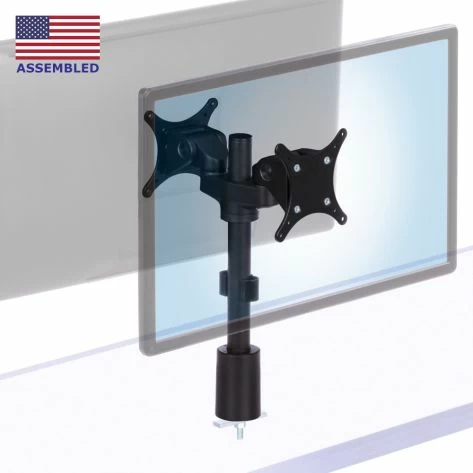

Back to Back Dual Monitor Countertop Mount - POS15

New USA ASSEMBLED
  • Compact 5.5" to 9.25" spacing between device mounts
  • Dual VESA mount sits 6-16" from mounting surface
  • Can mount monitors up to 35 lbs each
  • Easily handle wire management with included pole clip
  • Call for adapter plates to attach various devices
  • Call for custom pole sizes, colors and special mounting
Please wait while your content is loading.

REQUIRED ITEMS

A convenient, compact point of sale solution for multiple devices

The POS15 back-to-back countertop mount allows users to easily mount and adjust VESA compliant devices on countertops, desks and work stations. Its compact design, minimal footprint and impressive flexibility make it ideal for checkout areas.

The POS15 is a compact, flexible mount with a minimal footprint. It can be configured into an efficient station where a sales associate operates the register while interacting with the shopper. It features ample height, swivel, tilt, and rotational adjustment as well as optional articulating horizontal extensions for precise positioning of two devices to adapt to most checkout scenarios. It is also well suited to showrooms, workbenches and other scenarios requiring double sided support for displays and touchscreens in retail, exhibit space, light-industrial and other applications.

The basic configuration of the POS15 is ideal for tight-spaces. It allows for the two devices to be positioned back-to-back in a slightly offset arrangement with only 5.5” between them. The basic configuration can also be oriented to allow up to 9.25” between the devices. Optional articulating extensions add 3” of extra reach to one or both mounting points, resulting in a great deal of positioning flexibility. A dual wire management clip is used to control the cables along the pole.

The POS15 supports any combination of compatible devices, up to 35 lbs each: VESA monitors, touchscreens, tablet holders and credit card terminals. Please contact us if you have a specific payment terminal you would like to interface with.

This product is also compatible with Ergomart’s VESA Barcode Scanner Holder Bracket, which provides a convenient cradle for a handheld UPC label and barcode reader.

The POS15 provides several mounting options, the most popular being the through desk mount. Other options are also available, including desk clamps and wall mounts.

The POS15 comes in black with a 14” pole. Call us for custom pole lengths and colors to suit your application needs.

Shipping Weight 5 - 10 lb
Shipping Dimensions 21" x 19" x 8"
Warranty 5 Year limited

Mount Type

Monitor Stand

Number of Monitors

2

Mounting

Countertop Installed

Weight Range

35 lb per monitor

Monitor Horizontal Reach

2.75'' from mounting pole up to 8.25'' with optional extensions

Vertical Adjustment

Readjustable along 14" pole

Vertical Extensions

Call for information.

Horizontal Extensions

Light duty horizontal

VESA Options

75 x 75
100 x 100

Portrait to Landscape

Yes

Max Swivel (at Elbow)

Up to 270º if using an extension

Max Swivel (at Monitor)

Up to 360° depending on monitor size/tilt

Monitor Tilt Range

+90° up, -45° down

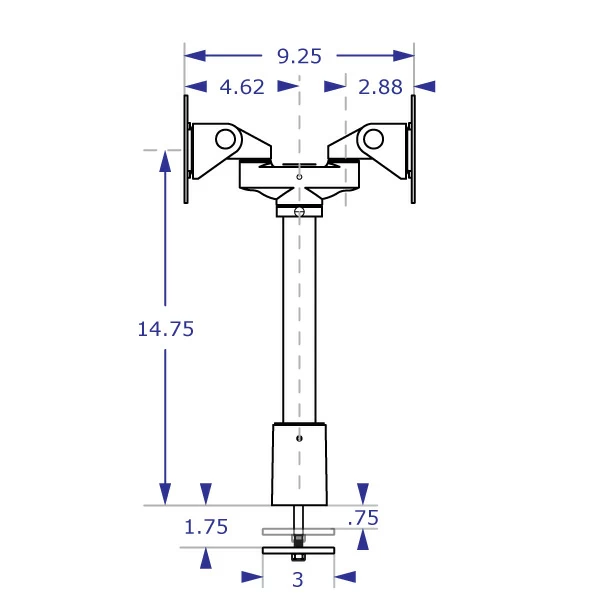

POS15 Back-to-Back Mount Front View

Back to Back Dual Monitor Countertop Mount specification drawing front view with tilter heads placed opposite

The pole diameter is 1.1875" (1 and 3/16"). When using Mount Kit K, the clamp can attach the worksurfaces between .75" and 1.75" thick.

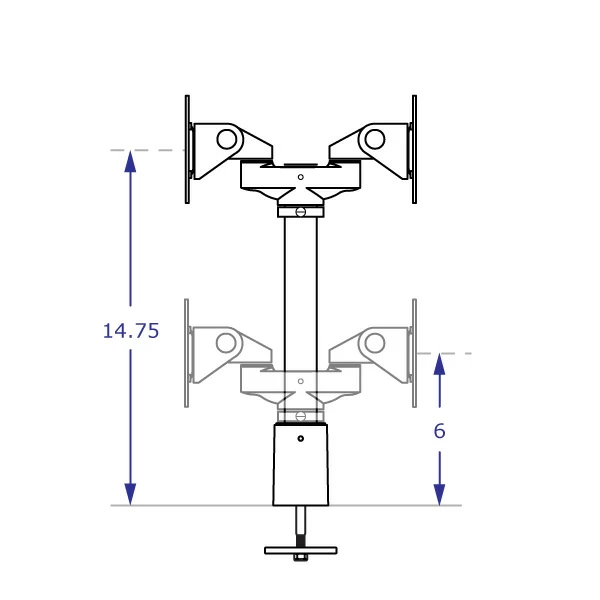

POS15 Back-to-Back Mount Height Adjustment

Back to Back Dual Monitor Countertop Mount specification drawing front view showing vertical adjustment

When not using an extension, the center point of the VESA mount plate is at 14.75" in its highest vertical position and 6" in the lowest vertical position.

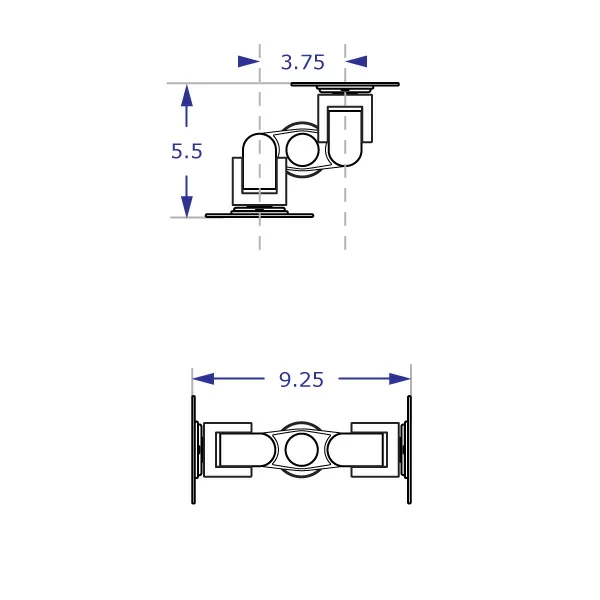

POS15 Back-to-Back Mount Top View

Back to Back Dual Monitor Countertop Mount specification drawing top view with tilter heads placed at widest position with parallel placement

Without an attached extension, the maximum distance between the VESA mounting plates is 9.25". 5.5" is the miminum in an offset mount position.

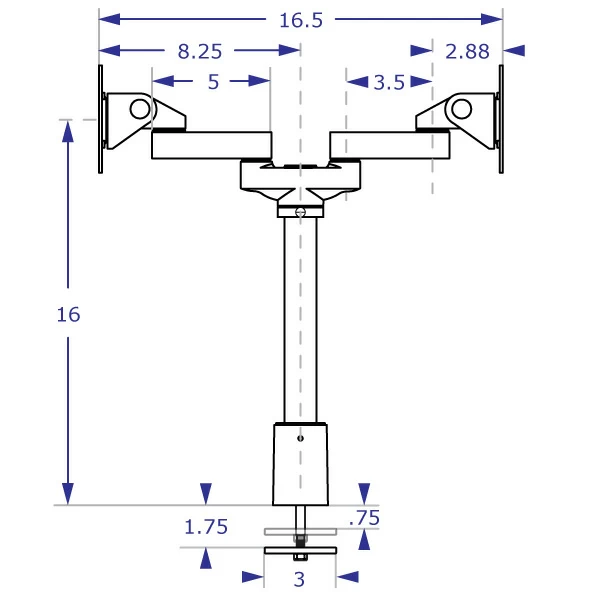

POS15 Back-to-Back Mount Front View with Extensions

Back to Back Dual Monitor Countertop Mount with extensions specification drawing front view with tilter heads placed opposite

With a 3.5-inch optional extension, devices can be mounted 8.25" from the pole center.

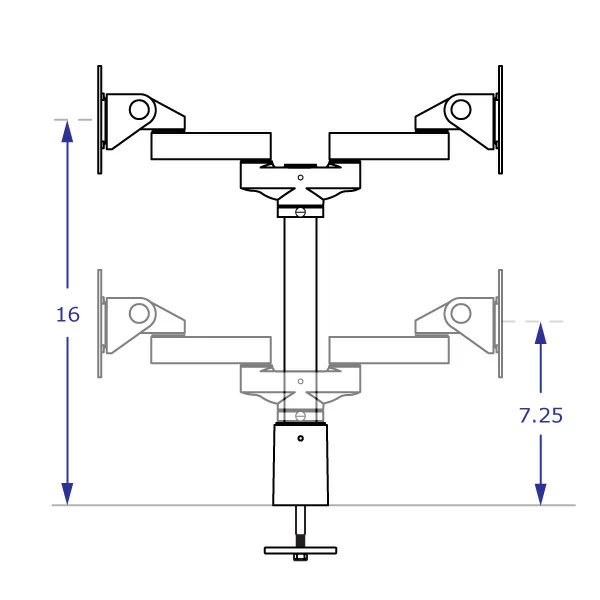

POS15 Back-to-Back Mount Height Adjustment with Extensions

Back to Back Dual Monitor Countertop Mount with extensions specification drawing front view showing vertical adjustment

When each mount fitted with a 3.5-inch extension, the center point of the VESA mount plate is at 16" in the highest vertical position and 7.25" in the lowest vertical position.

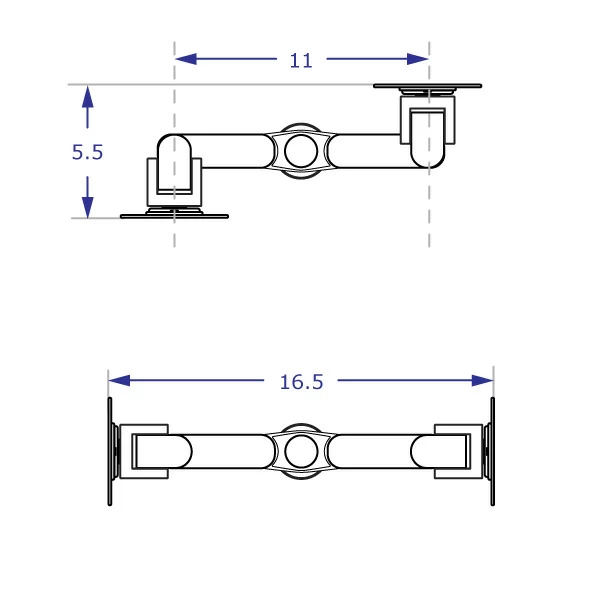

POS15 Back-to-Back Mount Top View with Extensions

Back to Back Dual Monitor Countertop Mount with extensions specification drawing top view with tilter heads placed at widest position with parallel placement

If each monitor mount has a 3.5-inch extension, the maximum distance between the VESA mounting plates is 16.5" and the minimum is 5.5" in an offset position.



POS15 Back-to-Back Mount Height Adjustment with One Extension

Back to Back Dual Monitor Countertop Mount with one extension specification drawing front view showing vertical adjustment

Utilizing a single 3.5-inch extension, the mounting point for the attached device will sit 1.25" higher than the mount without an extension.
