Name: Compact Pole Clamp Mount
SKU: CLAMP

SKU

CLAMP

The Pole Clamp Mount is a versatile yet simple solution for mounting various devices to Ergomart's Series 192 Poles or any other 3rd-party pole with a 1.375" to 2.0" outside diameter. Select CLAMP-L for larger poles with outside diameter between 1.91” and 2”, or CLAMP-U for the full range of diameters between 1.375” and 2”. Installation is easy: simply position the clamp and secure it with four socket head cap screws.

The Pole Clamp Mount has a square 1.9" threaded hole pattern that accepts 10-32 screws. This pattern allows for Ergomart's thin client holder to be directly attached to the clamp mount without any additional equipment, as well as any other device that has been fitted with a matching hole pattern.

The versatility of the Pole Clamp Mount comes from the ability to attach an Ergomart VESA plate, making the mount compatible with a VESA pattern from 75 x 75 mm to 400 x 600 mm and virtually any third party device that typically carries a VESA hole pattern, such as monitors, TVs, all-in-one computers, digital signage displays, interactive whiteboards and certain video conferencing equipment.

Additionally, the 100 x 100 mm pattern allows for all Ergomart's CPU holders to attach to the pole clamp.

VESA mounts of a range of sizes can be purchased from the accessories tab on this page.

Drawings

CLAMP-L

CLAMP-U

CLAMP-L

COMPACT POLE MOUNT

CLAMP-L
ISOMETRIC VIEW

CLAMP-L pole mount specification drawing isometric view

CLAMP-L
FRONT VIEW

CLAMP-L pole mount specification drawing front view with measurements

CLAMP-L
SIDE VIEW

CLAMP-L pole mount specification drawing side view with measurements

CLAMP-L
TOP VIEW

CLAMP-L pole mount specification drawing top view with measurements

In the side and top view measurements that indicate depth are nominal.

CLAMP-U

COMPACT POLE MOUNT

CLAMP-U
ISOMETRIC VIEW

CLAMP-U pole mount specification drawing isometric view

CLAMP-U
FRONT VIEW

CLAMP-U pole mount specification drawing front view with measurements

CLAMP-U

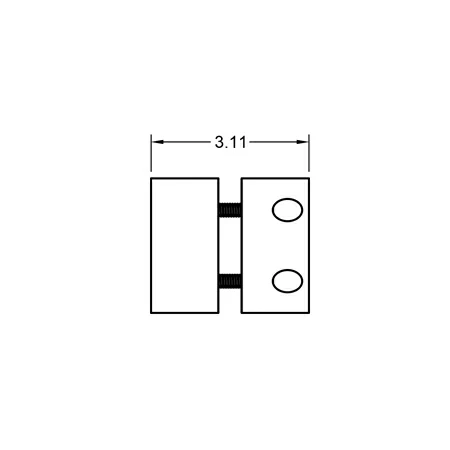

SIDE VIEW

CLAMP-U pole mount specification drawing side view with measurements

CLAMP-U
TOP VIEW

CLAMP-U pole mount specification drawing top view with measurements

In the side and top view measurements that indicate depth are nominal. Since the mount is designed for mounting to multiple size pole diameters, the opening changes to accommodate for those differences. Included spacers also facilitate attachment to a range of pole sizes.
