SAA4229R Long Reach Articulating Monitor Arm

MOUNTS! USA ASSEMBLED
Please wait while your content is loading.

REQUIRED ITEMS

THE DIGITAL ARTIST'S NEW BEST FRIEND KEEPS YOU WORKING COMFORTABLY

  • Effortlessly float devices 5 to 35 pounds
  • As much as 28" vertical range based on mounting options
  • Clamp configuration attaches to surfaces to 3.125" thick
  • Simple and quick tablet rotation from horizontal to portrait
  • Wacom Tablet Arm extends 44'' and folds up into 3.75"
  • Tilt the display back past 90° or down more than 40°
  • Cable management allows you to control cords
  • Optional 5", 8" and 12" desk mount vertical extensions
  • Black color with most styles ready to ship the same day
  • The arm comes with VESA plate supporting 75x75 mm and 100x100 mm monitors
  • Additional VESA adaptors can be purchased in the Accessories tab below

This version of the SAA4229 provides unmatched reach and flexibility for your Cintiq and most larger touchscreen devices. No other arm rivals the performance of the SAA4229R when it comes to massive vertical travel and workspace-spanning lateral reach. Dip the front desk edge right over the surface edge into your lap or lift it high for perfect standing drawing postures.  When you are done with Tablet, fold the arm up and back and spread out into a wide open work surface area.  Never turn a knob or move a lever—simply grasp the tablet with both hands and easily move it to the desired position—let go and the tablet and arm stay precisely where you put them.

The purchasing options on this page provide a great deal of flexibility in configuring your product. Please be aware that Mount Kit A is incompatible with the Heavy-Duty extensions and the 5", 8", and 12" vertical extensions.

Shipping Weight 29 pounds
Shipping Dimensions 28" x 17" x 9"
Warranty 5 year limited

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

The purchasing options on this page provide a great deal of flexibility in configuring your product.  Please be aware that Mount Kit A and the 2" and 6" Vertical Extensions are not compatible with all components. You may consult the table below to determine the compatibility of various components.


Category Mount Kits Vertical
Extensions
Heavy Duty
Horizontal
Extensions
Category Does product below
fit into product
to the right?
Mount
Kit A
Mount
Kit C
All Other
Mount
Kits
2"
6"
5"
8"
12"
4.5", 9.5"
and 15.5"
Monitor Arm SAA4229R - Y Y - Y Y
Vertical
Extensions
2" and 6" Y Y Y Y Y Y
   5", 8", and 12" - Y Y - Y Y
Heavy Duty
Horizontal
Extensions
4.5", 9.5", and 15.5" - Y Y - Y Y



Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.



SAA4229R - WALL MOUNTED
VERTICAL REACH

SAA4229RKIT long-reach tablet arm specification drawing demonstrating the arm extended in high, mid and low positions with measurements

Side view of the SAA4229R when wall-mounted. With no obstructions, the arm offers 26" of vertical travel and has a horizontal reach of up to 44.25".



SAA4229R - WALL MOUNTED
DISTANCE FROM WALL

SAA4229RKIT long-reach tablet arm specification drawing demonstrating the arm folded in high, mid and low positions with measurements

Side view of the SAA4229R when wall-mounted. In this illustration, the arm is folded so that the monitor is perpendicular to the wall. The distance from the center point of the monitor to the wall depends on the vertical position of the arm. This determines the maximum size of the monitor or tablet that can be viewed at a 90 degree angle from the wall in this folded position.

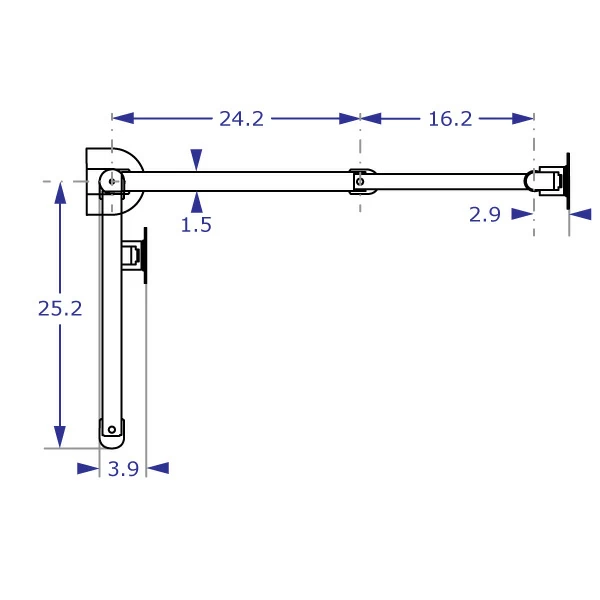

SAA4229R - DESK MOUNTED
HORIZONTAL REACH

SAA4229RKIT long-reach tablet arm specification drawing top view showing the arm in fully extended and folded positions with measurements

Top view of SAA4229R when desk mounted. When fully extended, the arm reaches out as far as 44.25". When retracted in the horizontal position, the arm can be folded into as little as 3.5".

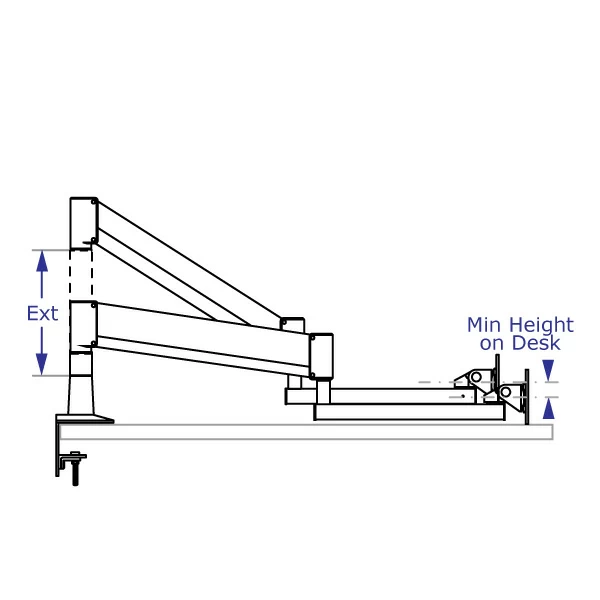

SAA4229R - DESK MOUNTED
MINIMUM HEIGHT

SAA4229RKIT long-reach tablet arm specification drawing with arm desk-mounted shown with and without an extension in lowest position

Side-view of the SAA4229R when desk-mounted. The surface of the desk will inhibit the arm from traveling to its lowest possible position. As a result, the total instant vertical adjustability will be limited to 15" compared to 26" with the wall mount option. To reclaim the range of motion, optional vertical extensions can be added. Please note, Mount Kit A is not compatible with the 5, 8 and 12 inch extensions.

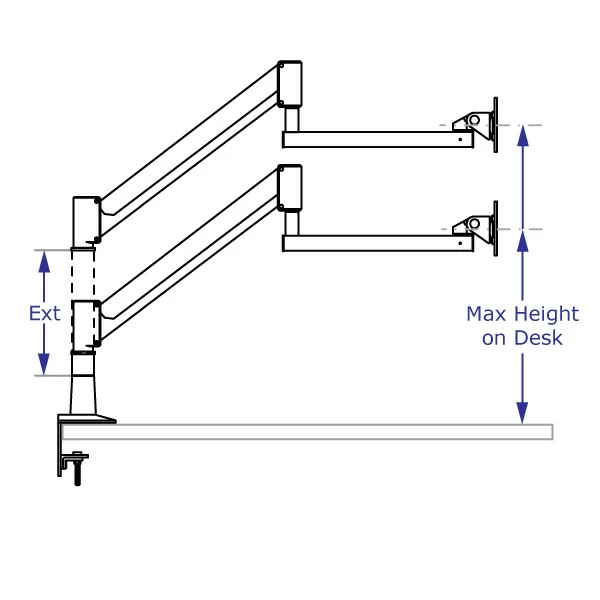

SAA4229R - DESK MOUNTED
MAXIMUM HEIGHT

SAA4229RKIT long-reach tablet arm specification drawing with arm desk-mounted shown with and without an extension in highest position

Side-view of the SAA4229R when desk-mounted. The figure shows the impact of adding vertical extensions on the maximum height the arm can reach. The 12" extension allows the maximum height to reach 29.5".

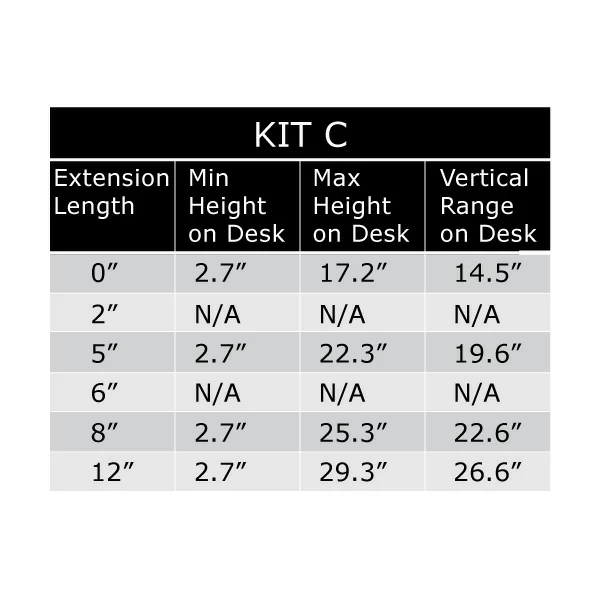

SAA4228R - VERTICAL EXTENSION TABLE
MOUNT KIT C

Vertical Extension Table for the SAA4228R with Mount Kit C

Vertical Extensions have an impact on vertical adjustability in a desk mounted set up. Here are the ranges with Mount Kit C.



200x200mm Flat VESA Plate with Hardware
200x200mm Flat VESA Plate with Hardware

This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.

QTY:
$20.00
200x400mm Flat VESA Plate with Hardware
200x400mm Flat VESA Plate with Hardware

The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.

QTY:
$25.00
VESA 1/4-inch Spacer Kit
VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

QTY:
$2.00
VESA 1/2-inch Spacer Kit
VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.

QTY:
$3.00
100x200mm Flat VESA Plate with Hardware
100x200mm Flat VESA Plate with Hardware

V12

The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.

QTY:
$15.00
