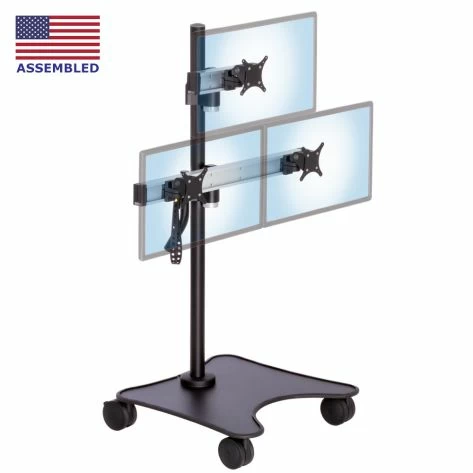

This mobile triple monitor cart features a compact design, placing one monitor over two to minimize its width while still providing plenty of display space. The heavy-duty, sturdy cart facilitates easy movement even with substantial weight attached. Its perfect for store and lobby informational displays, education environments and medical facilities such as operating rooms and other patient care environment monitoring.
At the top of the unit sits a single monitor on a small 10" beam. The maximum size of this monitor is restricted only by the bottom edge touching the top edges of the bottom two monitors. Beneath this monitor, two smaller monitors are placed on a 30" beam. The VESA compatible monitor attachments can be placed anywhere along this beam. If placed at the edge of each side of the beam, the device can accommodate monitors up to 28.5" in width. Please note this maximum size is reduced to approximately 27" if the monitors are to be used in a curved configuration as the bezels will impede movement.
The entire cart is supported by four heavy-duty casters, easily gliding the unit despite holding three weighty monitors. When movement is not required, two of the casters lock to keep the unit safely in place. At the base of the unit, an optional CPU holder can be attached. Depending on size of the devices, the holder can keep additional equipment such as power supplies so they can be easily transported with the system. Wires and cables can be attached along the pole via cable clips to keep them out of the way and tidy.
Please contact Ergomart at 888-420-3200 for more information or to order this product.
If a flat configuration is desired for the bottom two monitors of the MCART-12, the maximum width of each equally sized monitor can be approximately 28.5 inches.
When the bottom two monitors of the MCART-12 are curved inwards, the maximum allowable width is slightly diminished from when they are flat. Assuming two-inch deep monitors, the maximum width is approximately 25 inches when curved.
This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.
The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.
This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.
This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.
