Mounting Kit E: Heavy Duty Pole Mounting Kit

USA ASSEMBLED MODULAR SERIES-118

REQUIRED ITEMS

  • Mounting Kit E - a heavy-duty pole mounting kit
  • Created to withstand demanding work environments
  • Adjustable opening fits 1.5" to 2" outside diameters
  • Mount option: pole mount
  • Black is the standard color for this mount
  • Call Ergomart for custom color options - lead times may apply

Ergomart's Pole Mount works for poles with outside diameters (OD) between 1.5 and 2 inches diameter.
This is a heavy-duty product and will stand up to the toughest environments.
Position the clamp and secure it with four socket head cap screws.
Use multiple HD Pole Mounts to create custom pole mounted workstations.

Compatible arm models: SAA7000, SAA2010, SAA2045, SAA179, SAA2718, SAA2415, SAA4229, CMD2018, CMD2415, CMT2415

WORKS WITH SERIES-118 DEVICES


BUILD YOUR PM192 OR MCART SOLUTION

VIEW
SERIES-118 MOUNTING CATALOG

BROWSE
ALL PM192 BUYING OPTIONS

EXPLORE
RECENT CUSTOM PROJECTS

LEARN
PM192 REFERENCE GUIDE

CONSULT
[email protected]   |   888 420 3200

FLOOR STANDS • CEILING MOUNTS • CARTS

HEAVY DUTY • ADAPTABLE • HIDES WIRES




MOUNT KIT E

HEAVY-DUTY POLE MOUNTING KIT

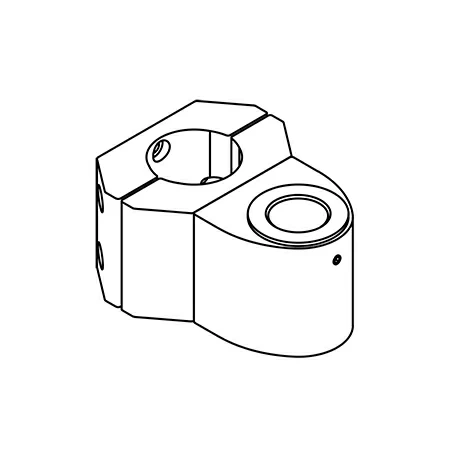

KIT E
ISOMETRIC VIEW



MKIT-E pole mount specification drawing isometric view



KIT E
FRONT VIEW



MKIT-E pole mount specification drawing front view with measurements

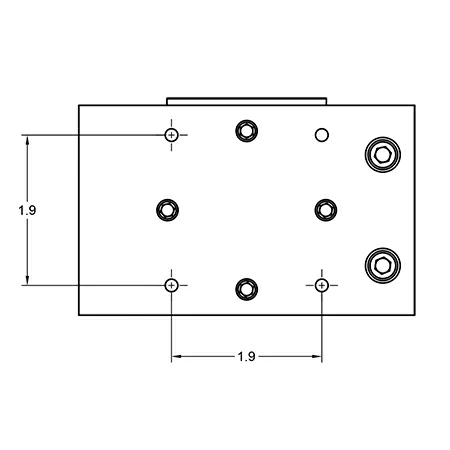

KIT E
SIDE VIEW



MKIT-E pole mount specification drawing side view with measurements



KIT E
TOP VIEW



MKIT-E pole mount specification drawing top view with measurements



In the side and top view measurements that indicate depth are nominal. Since the kit is designed for mounting to multiple size pole diameters, the opening changes slightly to accommodate for those differences. Additionally included and not depicted here are the adapter bushings that allow the MKIT-E to affix to the range of pole sizes.

  • Will your mount kits work with 3rd party arms?

    Typically, no, our mounts are designed specifically for Ergomart products. Contact Ergomart to determine if you would like assistance.

  • Is there a way that I remove my arm and just put the tilter head in to the mount kit?

    No and Yes. Since the tilter head pin is a smaller size than the arm pin, you would not be able to do that without installing an adapter bushing into the mount. Contact Ergomart if you wish to purchase the adapter.

  • Can I adjust the height on the pole?

    Yes. You will need to remove the monitor/arm for ease and safety before resetting the height.

  • Can I use this on a wire shelf or medical cart, etc?

    The Mount Kit E is designed to attach to poles between 1.5" and 2" outside diameters. If your pole is within that range then this mount kit will work for you. Contact Ergomart if you have a 1 inch, 1.125 inch or 1.25" pole, we may be able to accommodate your requirement with a non standard product.

  • Can I put tilter heads and HE35/HE75's directly into this?

    An adapter bushing is required to convert most MKITS from 1.18" receiver openings down to .75" openings suitable for devices with 3/4" diameter pins like the HE35 and the standard tilter head.
