Yes. Simply remove the payload prior moving the pole mount portion.
Talk to an ergo expert: (888) 420-3200 or Email Us
SKU
PM40-BB103
Our Instantly Adjustable Computer Workstation Kit Mounts to Poles with Diameters from 1.5 to 2 Inches
- Works great with LCDs, Panel PCs, iMacs and Touchscreens
- Choose the 20" or 26" folding tray for use with or without mouse
- Choose tray with or without palm rest
- LCD Keyboard Combo handles monitors up to 35 lb
- Flat Panel VESA Mount extends LCD 4.25" from pole
- Intuitive & easy to move from position to position
- Need to wall mount? Try our TRS91
- Standard lead time is 3 to 8 days
- Questions? Call us: 888-420-3200 8:30 am–6 pm CST
- Pole Mount Bracket is black; custom colors are available with large quantity orders
VIEW
SERIES-118 MOUNTING CATALOG
BROWSE
EXPLORE
LEARN
CONSULT
[email protected] | 888 420 3200
The PM40-BB103 perfect flat screen pole mount for dental offices, laboratories, kiosks and retail environments—any place you need to mount a monitor and keyboard user friendly adjustability coupled with a minimal footprint. The unit is easily quickly tilted and turned, allowing for easy repositioning and instant access to short and tall users alike. Ergomart's Pole Mount works for poles with outside diameters (OD) between 1.5 and 2 inches. This is a heavy-duty product and will stand up to abuse in the toughest environments. Tilt and swivel resistance are easily adjusted for quick and easy movement or may be set for greater resistance to movement for consistent with the requirements of use with touch screens.
| Shipping Weight | 12 pounds |
| Shipping Dimensions | 26" x 20" x 6" |
| Warranty | 5 year limited |
Black is our Quick Ship (QS) color. Please call us about custom colors with four to six week lead times. Orders are usually shipped within 48 hours. Questions? We are here to help you! Please call 888 420 3200 or 214 742 6066.
|
PM40-BB103 - POLE MOUNT PERSPECTIVE VIEW
PM40-BB103 - POLE MOUNT FRONT VIEW
PM40-BB103 - POLE MOUNT
SIDE VIEW

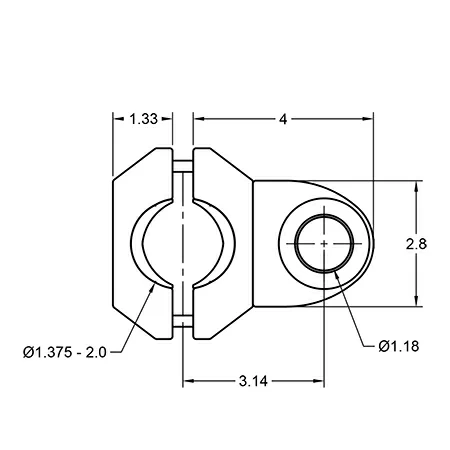

PM40-BB103 - POLE MOUNT
TOP VIEW

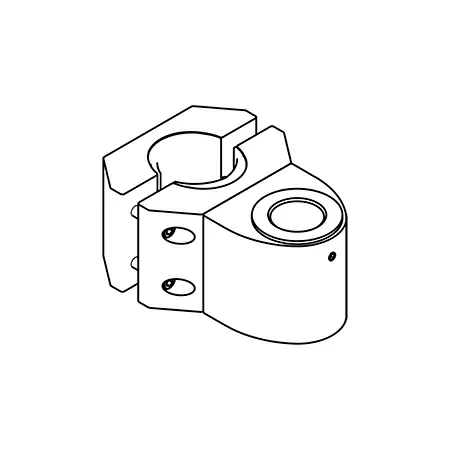

PM40-BB103 - POLE MOUNT
PERSECTIVE VIEW
PM40-BB103 - POLE MOUNT
FRONT VIEW
PM40-BB103 - POLE MOUNT
SIDE VIEW
PM40-BB103 - POLE MOUNT
TOP VIEW
PM40-BB103 - NO EXTENSION
PM40-BB103 - 3.5" EXTENSION

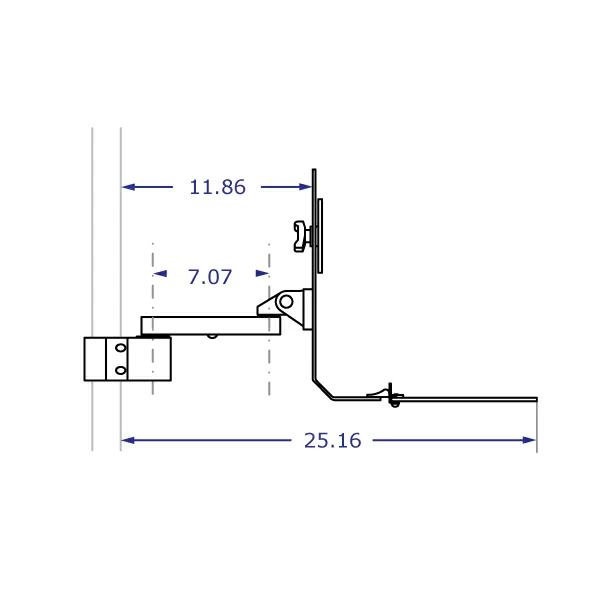

PM40-BB103 - 7" EXTENSION
PM40-BB103 - 10.5" EXTENSION
100x200mm Flat VESA Plate with Hardware
V12
The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.
QTY:
$16.54
200x200mm Flat VESA Plate with Hardware
This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.
QTY:
$22.05
200x400mm Flat VESA Plate with Hardware
The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.
QTY:
$27.56
Heavy-Duty Mount Adapter Plate 100x300 to 400x600mm
The extra large MSU4X6 VESA adaptor bracket attaches to a wide range of VESA patterns from 100x300 mm up to 400x600 mm. The hole patterns on the central plate allow it to be mounted to tilter heads or wall mounts, often using an additional smaller VESA plate (e.g., 75 mm, 90 mm, 100 mm, 200 mm or 100x200 mm) in between.
QTY:
$71.66
VESA 1/4-inch Spacer Kit
This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.
QTY:
$2.10
VESA 1/2-inch Spacer Kit
This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.
QTY:
$3.15
-
Could I adjust the height on the pole?
-
How tall is the pole on this product?
This is only the mount for the pole. The pole and base are sold separately with different heights and options for the base.
-
If I decide later that I want to put an arm in this mount, can the adapter bushing be taken out, and if so, will the bushing function as intended?
No, the set screw deforms the original bushing into a slot on the adapter bushing, making it difficult to extract. Even if one is able to remove said bushing, the original bushing is often times deformed.
-
Can this swivel in the pole mount or is it fixed?
Yes, the tilter head attached to the top pole mount extrusions swivels within its seat. There is a set screw that increase and decreases resistance to rotation.
