POS9137T Triple Mount PoS Mounting Solution

  • Point-of-sale stand for two monitors and printer/cc tray
  • Position and secure devices at any height on 28" pole
  • Independent articulating arms for the three devices
  • Instant screen tilt (-90°/+44°), portrait/landscape rotation
  • Well suited for touchscreen devices
  • Standard platform is 8.75"x6.75". Call for custom sizes
  • Wire management features for a clean look
  • Supports 75x75 & 100x100 mm VESA patterns
Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE



  • LCD screen can be tilted up 90° & 44° or downward instantly
  • The platform size is 8.75"x6.75". Contact us for custom sizes.
  • Three triple articulating arms reach out to about 14 inches
  • Tilt, pivot and extend for ultimate adjustability
  • Height can be reset for each arm in seconds
  • Set articulating arms to resist movement
  • Some assembly required for POS stand
  • Flexible: tilt tray and monitor as needed
  • Two screens: one for customer, one for the sales person
  • For VESA 75 & 100 mm touch screens & LCD monitors
  • Custom pole lengths for quantity orders: please call or email

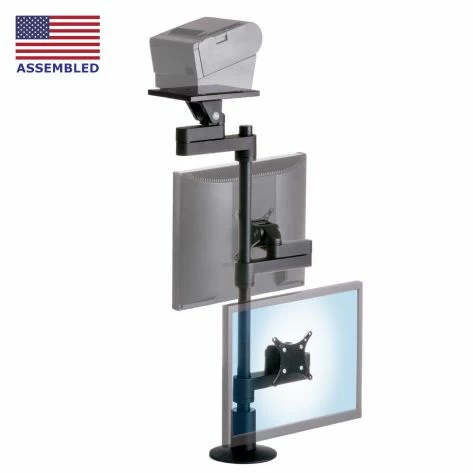

The POS9137T comes with a 28 inch pole and three articulating arms. In its standard configuration, two highly adjustable arms handle touch screens or LCD monitors and allow for easy tilting and swiveling. The third articulating arm is designed to hold a credit card terminal, point of sale printer, or other POS equipment requiring a platform. It includes a a 8.75"x6.75" platform capable of holding one or multiple items depending on the size ordered. Custom sizes may be available depending on the application. Each arm has a 35 pound payload capacity.

Set the resistance to movement for components appropriate to your requirements. Swivel, tilt and arm articulation can be set for easy movement or for resistance to movement. Touch Screen monitors require resistance to movement when in use. Alternately a monitor used by multiple users can be set for effortless repositioning. Resetting height is easily accomplished in less than 15 seconds. This triple arm, triple articulating POS pole mount system offers better lateral mobility to meet the needs of persons with ADA accessibility requirements. Bottom line: covers the needs of the retailer and customer with a smaller footprint.

The 4-in-1 Flexible Mount Kit A is adaptable to most vertical and horizontal mounting applications. POS9137T is also compatible with other Mount Kits, including heavy-duty wall Mount Kit D and heavy-duty track Mount Kit F.

Shipping Weight Minimum 18 pounds
Shipping Dimensions Minimum 32" x 13" x 6"
Warranty 5 year limited

Mount Type

Monitor Stand

Number of Monitors



Flex Kit A (Desk, Wall)

Weight Range

Up to 35 lb

Monitor Horizontal Reach


Vertical Adjustment

Readjustable along 28" pole

VESA Options

75 x 75
100 x 100
100 x 200

Portrait to Landscape


Max Swivel (at Base)


Max Swivel (at Elbow)


Max Swivel (at Monitor)


Monitor Tilt Range

+90° up, -45° down

Max Equipment Weight

35 lbs

Equipment Platform Size

3.5"x3.5" to 14"x10"

Equipment Vertical Travel

Readjustable along 28" pole


POS9137T Specification drawing for articulating point of sale stand from side view with two VESA mount brackets and platform

The height can be reset for each arm in seconds along the 28.5 inch pole. The tilter heads allow for landscape to portrait rotation of LCD screens and other equipment. POS platform size is 8.75"x6.75". Custom sizes may be available depending on the application.


100x200mm Flat VESA Plate with Hardware
100x200mm Flat VESA Plate with Hardware


The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.

200x200mm Flat VESA Plate with Hardware
200x200mm Flat VESA Plate with Hardware

This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.

200x400mm Flat VESA Plate with Hardware
200x400mm Flat VESA Plate with Hardware

The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.

Heavy-Duty Mount Adapter Plate 100x300 to 400x600mm
Heavy-Duty Mount Adapter Plate 100x300 to 400x600mm

The extra large MSU4X6 VESA adaptor bracket attaches to a wide range of VESA patterns from 100x300 mm up to 400x600 mm. The hole patterns on the central plate allow it to be mounted to tilter heads or wall mounts, often using an additional smaller VESA plate (e.g., 75 mm, 90 mm, 100 mm, 200 mm or 100x200 mm) in between.

VESA 1/4-inch Spacer Kit
VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

VESA 1/2-inch Spacer Kit
VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.
