Typically, no, our mounts are designed specifically for Ergomart products. Contact Ergomart to determine if you would like assistance.
Talk to an ergo expert: (888) 420-3200 or Email Us
SKU
MKIT-L MKIT-L

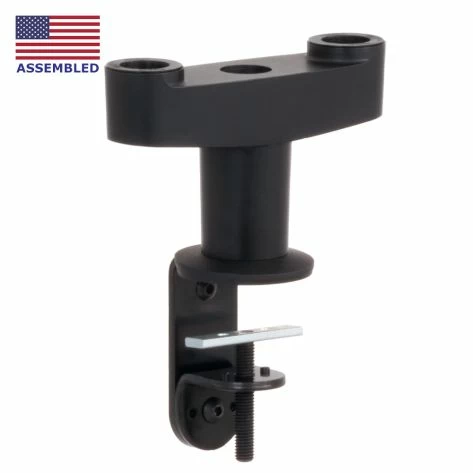

Our Mounting Kit L is for mounting two arms to one mount.
The mount itself clamps to horizontal surfaces up to 2" thick.
Mounting Kit L can be used as a desk clamp, thru desk, grommet hole and box edge mount.
Compatible arm models: SAA7000,
SAA2010,
SAA2045,
SAA179,
SAA2718,
SAA2415,
SAA4229.
SERIES-118
VIEW COMPATIBLE ARMS & OTHER DEVICES
MOUNT KITS
VIEW ALL SIMILAR MOUNT KIT OPTIONS
EXPLORE
RECENT CUSTOM PROJECTS
LEARN
READ THE SERIES-118 REFERENCE GUIDE
CONSULT
[email protected] | 888 420 3200
MOUNT KIT L
PERSPECTIVE VIEW
MOUNT KIT L
FRONT VIEW
MOUNT KIT L
SIDE VIEW
MOUNT KIT L
TOP VIEW
From the wall to the very front of the Mount Kit L is 3.38 inches.
MOUNT KIT L
MINIMUM CLAMP POSITION
If a table skirt or other obstruction runs along the underside of the surface, it must be 2.75 inches or greater from the table edge using this configuration.
MOUNT KIT L
MAXIMUM CLAMP POSITION
The small L bracket can be repositioned so that if a table skirt or other obstruction runs along the underside of the surface and is as close as 1.12 inches from the surface edge, the clamp can still be affixed to the edge. WARNING: The arm should not be allowed to rotate out behind the surface as the clamp is not completely stable.
-
Will your mount kits work with 3rd party arms?
-
Is there a way that I remove my arm and just put the tilter head in to the mount kit?
No and Yes. Since the tilter head pin is a smaller size than the arm pin, you would not be able to do that without installing an adapter bushing into the mount. Contact Ergomart if you wish to purchase the adapter.
-
Does this mount swivel at its base?
Yes and No. The device that is placed into the upper receivers will be able to rotate. The point at which the dual mount attaches to the top of the surface is fixed.
