LeverLift Wall-Mounted Fixed Keyboard Shelf

Name: LeverLift Wall-Mounted Fixed Keyboard Shelf
Brand: Ergomart
SKU: LEVERLIFT-FS

USA MADE MODULAR

Add Your Review

REQUIRED ITEMS

Fixed height platform mounts anywhere on a wall-mounted LeverLift vertical track
Five platform sizes: three width and two depth options
One of many LeverLift wall track compatible components
Suitable for items and equipment other than keyboards
Takes up 7" of vertical track and extends out 10.72" to 13.22" from wall depending on shelf size
Readjust position using Allen wrench and set-screw
If you desire instant height adjustability, try the LeverLift Fixed Angle Keyboard Tray Slider
KEYBOARD SHELF ONLY. TRACK AND OTHER COMPONENTS SOLD SEPARATELY.

Description

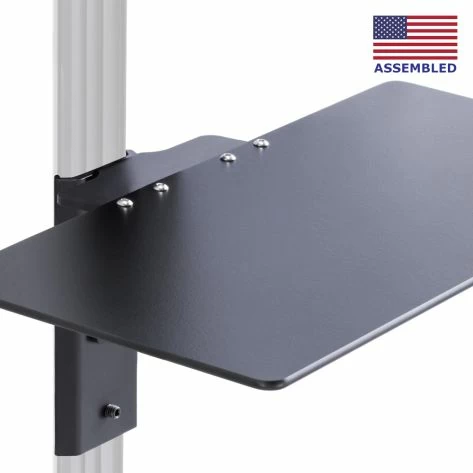

LeverLift Fixed Height Keyboard Tray Shelf

The LeverLift Fixed Shelf is a stationary keyboard tray shelf that can be installed anywhere along a wall-mounted LeverLift track. It is not height adjustable, but is attached to the mount with a simple set screw and can be removed and reattached if circumstances change and a different height is required.

The wall-mounted keyboard tray is available in five different size options: 18 inches x 8.5 inches, 20 inches x 8.5 inches, 26 inches x 8.5 inches, 20 inches x 11 inches and 26 inches x 11 inches, suitable for a variety of keyboard sizes. This economical fixed shelf is also excellent as a storage shelf for other equipment or items.

The keyboard tray mount takes up 7 inches of the LeverLift track and extends out 10.72 inches from the track mount surface for the 8.5-inch platform and 13.22 inches for the 11-inch platform.

If you need easy sit-to-stand height adjustability, the LeverLift family also includes an articulating keyboard slider mount, a low profile folding keyboard tray, and a fixed angle keyboard platform.

LEVERLIFT™ WALL MOUNTS

INSTANT ADJUST

INSTANTLY RAISE OR LOWER YOUR MONITOR, TABLET OR KEYBOARD

INDEPENDENT LIFT

EACH MOUNT MOVES INDEPENDENTLY FOR IDEAL ERGONOMIC POSITIONING

RANGE OF MOTION

THE ADJUSTMENT RANGE IS LIMITED ONLY BY THE TRACK SIZE AND YOUR EQUIPMENT

LOW-PROFILE

COMPACT MOUNTS FOR TIGHT SPACES INCLUDING ADA-COMPLIANT OPTIONS

MOUNT ANYWHERE

INSTALLS ON WALL, SERVER/PALLET RACKS, CABINETS, DRYWALL, ORIGINAL EQUIPMENT

FOR HELP WITH YOUR DESIGN OR DISCUSS CUSTOMIZATIONS
EMAIL [email protected] OR CALL +1 888 420 3200

BROWSE ALL LEVERLIFT™ OPTIONS

EXPLORE RECENT LEVERLIFT™ CUSTOM PROJECTS

Shipping Weight	Up to 5 lb
Shipping Dimensions	Up to 26" x 13" x 8"
Warranty	5 year limited

Specifications

Mount Type	Vertical Wall Track
Keyboard Trays	18" x 8.5" 20" x 8.5" 26" x 8.5" 20" x 11" 26" x 11"
Keyboard Tray Height Adjustment	Readjustable using Allen wrench and set screw.
Keyboard Tray Tilt Range	None
Keyboard Horizontal Reach	10.72" for 8" deep shelf and 13.22" for 11.5" deep shelf
Equipment Vertical Travel	Re-adjustable along track with set screws

Drawings

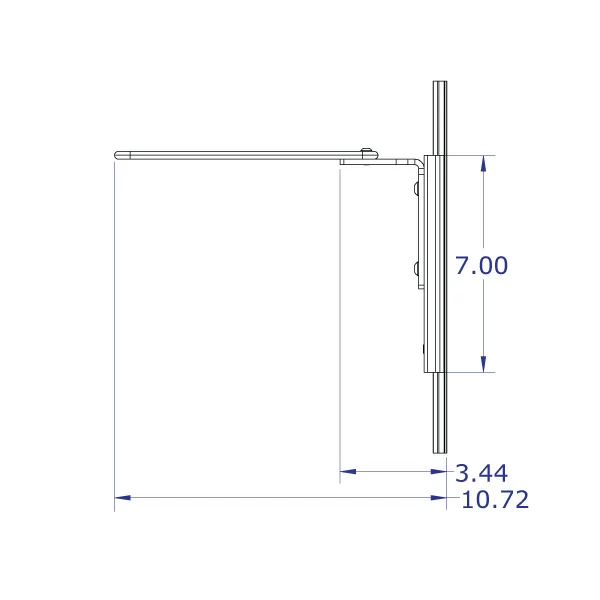

COMPACT FIXED-ANGLE KEYBOARD TRAY SHELF - SIDE VIEW

LEVERLIFT-E sliding monitor and keyboard tray wall mount specification drawing fixed angle keyboard tray slider side view with measurements

The 8.5"-width compact fixed shelf keyboard tray mount extends 10.72" from the wall to the edge of the tray. The mount itself, without the tray attached, occupies 7" of the LeverLift track and extends out 3.44".

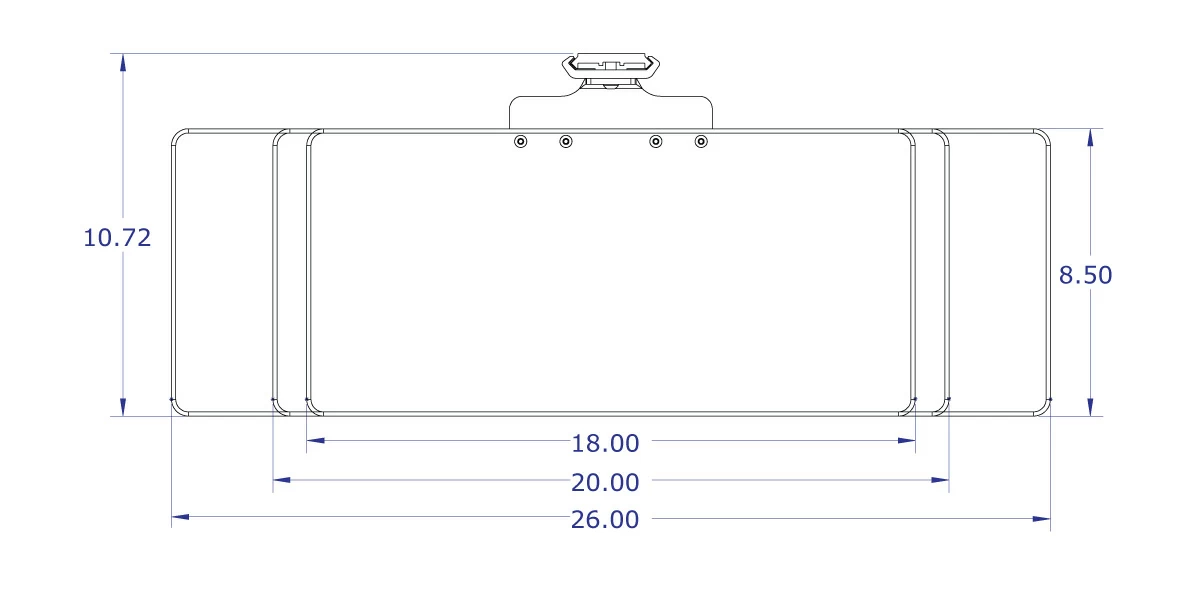

COMPACT FIXED-ANGLE KEYBOARD TRAY SHELF - TOP VIEW

LEVERLIFT-E wall mounted computer workstation specification drawing fixed angle keyboard tray slider top view with measurements

This top view illustrates three of the five keyboard shelf tray options available, 18" x 8.5", 20" x 8.5" and 26" x 8.5". The 18" and 20" trays are designed for compact keyboards, while the 26" accommodates larger keyboards with a number pad. The 8.5" trays shown here extend 10.72" from the mounting surface to the front of the keyboard tray.

FIXED-ANGLE KEYBOARD TRAY SHELF - SIDE VIEW

The 11-inch width fixed shelf keyboard tray mount takes up 7" of the LeverLift wall track. The mount without the tray attached extends 3.44" and the tray is 13.22" from the mounting surface to the tray edge.

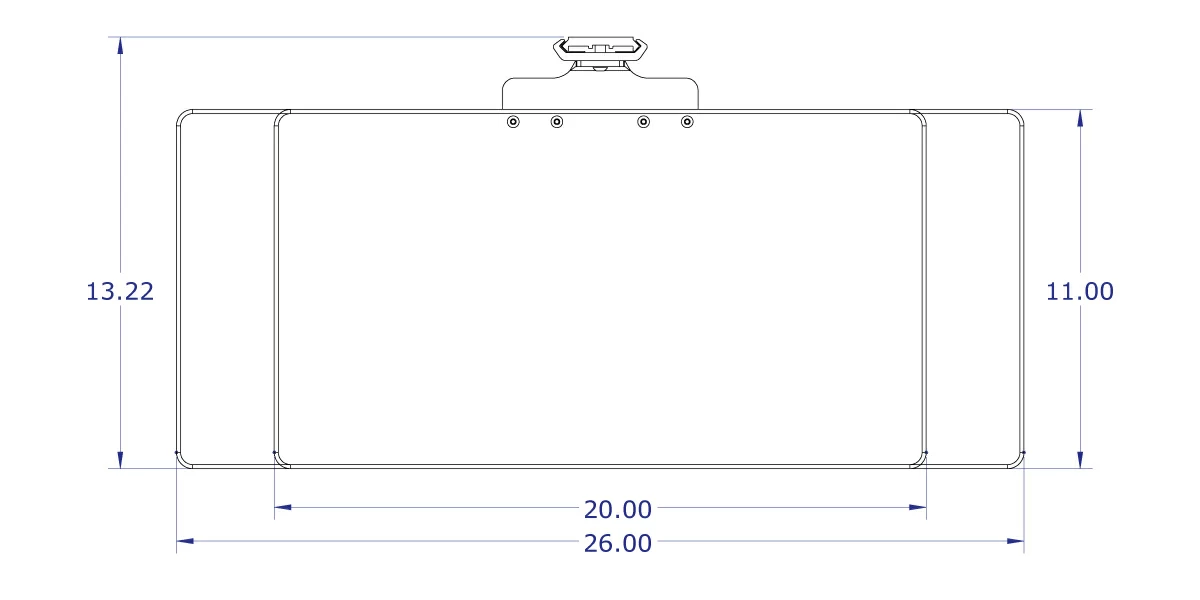

FIXED-ANGLE KEYBOARD TRAY SHELF - TOP VIEW

This top view drawing illustrates the two 11-inch width tray options, 20" x 11" and 26" x 11". The smaller tray is more suited for compact keyboards while the wider tray can fit keyboards that include a number pad. Both trays extend 13.22" from the mounting surface to the tray edge.
