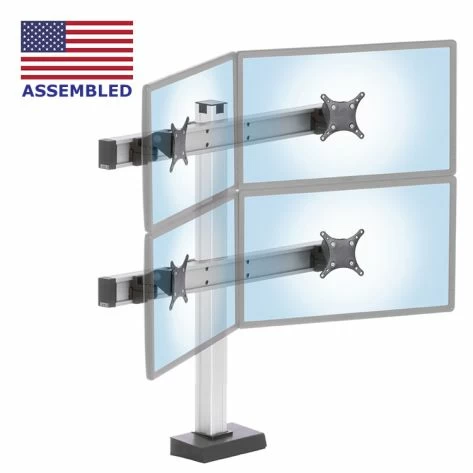

The CONNECT-22 is a dual-tier stand designed to handle four monitors each measuring 28.5 inches wide and weighing as much as 30 pounds each. Two, sturdy, functional horizontal beams can be mounted at any height along the 33 inch tall central column. The four monitors are installed on premium articulating VESA mounts which can be located anywhere along the beams. These tilter mechanisms provide instant landscape/portrait orientation adjustment, as well as full swivel and tilt capability. The wire management system resides along the column and the beams and ensures clutter-free cable routing. The stand is attached to the work surface via either a thru-desk or a clamp mount assembly.
The CONNECT system is highly modular and can scale from 2 to 8 monitors, including some asymmetrical configurations, all the while reusing the original parts of the mounting system. The flexibility inherent in this design philosophy makes the CONNECT the smart choice for those who anticipate that their computing needs will evolve over time.
Motorized Height Adjustment
The CONNECT-22 dual-tier, four monitor stand comes with an optional motorized column which provides up to 10 inches of simultaneous vertical adjustment to all four monitors at the touch of a button, accommodating stations where multiple users of different heights alternate. The motorized column can move a total weight of about 150 pounds. Accounting for the weights of the system components, the maximum per-monitor weight for the Motorized Height-Adjustable Connect-22 is 29 lbs.
|Connect-22 Shipping Weights and Dimensions|
|Static Column||39 lb, 41"x15"x15"|
|Motorized Column||box1: 20 lb, 40"x13"x6", box2&3: 14 lb, 32"x15"x4"|
|Clamp Mount||adds 7 lb to box1|
Monitors are placed in a dual-tier, two-over-two configuration. Each row contains one 30 inch beam with two fully articulating monitor mounts called tilter mechanisms or tilter heads.
Static columns are used to mount the horizontal beams. Each beam can be placed anywhere along the column during installation. The Dual static column is 33.5 inches in height.
The motorized column is an optional feature. It enables up to 10 inches of simultaneous height adjustment for both monitors when the button located at the base is pressed.
The dual monitor setup places the two tilter mechanisms side by side anywhere along a 30 inch horizontal beam. In this configuration, the CONNECT-22 can accommodate monitors that each measure up to 28.5 inches wide in landscape orientation.
The two-tier four monitor stand CONNECT-22 allows the maximum width of each monitor to be approximately 28.5 inches when they are in a flat alignment.
Many users like to have their monitors curved inwards. Angling the monitors of the two-tier CONNECT-22 inwards slightly reduces the maximum allowable width from 28.5 inches to around 27 inches compared to a flat configuration (assuming a 2 inch deep monitor).
The side view of the single tier configuration with the clamp mount assembly and the tilter mechanism show that the depth of the stand before the monitor is placed is 8.5 inches.
The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.
This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.
The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.
The extra large MSU4X6 VESA adaptor bracket attaches to a wide range of VESA patterns from 100x300 mm up to 400x600 mm. The hole patterns on the central plate allow it to be mounted to tilter heads or wall mounts, often using an additional smaller VESA plate (e.g., 75 mm, 90 mm, 100 mm, 200 mm or 100x200 mm) in between.
This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.
This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.
