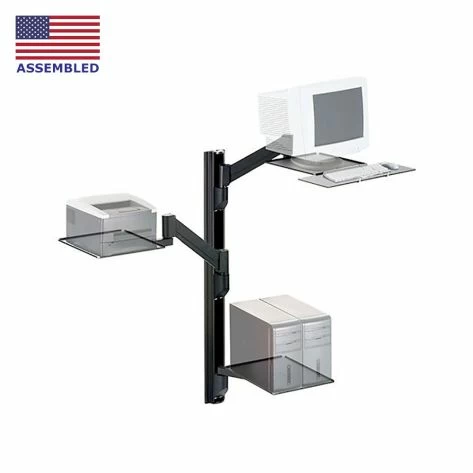

HDTS (Heavy Duty Track System) COMBO 4 is a truly universal heavy duty work positioning system: it handles the weight and size of bulkier printers, copiers, CRT monitors, and other equipment weighing as much as 90 pounds. The base recommended model provides three swiveling platforms, two of them mounted on height adjustable articulating arms and the third on a fixed height equipment arm. The two standard articulating arms boast over 14 inches of vertical range plus plenty of lateral reach and swivel to accommodate diverse applications and demanding users. The third recommended arm supports equipment that does not require vertical float but it does allow the user to rotate the platform up to 360°. Because we offer dozens of components that work with our HDTS, the COMBO 4 workstation can be adapted to your evolving work environment.
The HDTS COMBO 4 System has six major elements:
The Combo 4 vertically adjustable arm options consist of the 2415 and the 3418 series equipment arms designed to effortlessly float heavy equipment weighing up to 50lbs. Of the two, the 3418 offers greater horizontal and vertical reach. Additionally, the SA1288 provides horizontal reach without vertical adjustability. The weight range of the equipment that can be floated by each arm is a function of the strength of each arm and the equipment platform being used. Please consult the table in the specifications tab to select the right combination.
The universal applicability of our HDTS makes it an ideal complement to biotechnology work environments, all types of manufacturing, machine shops, medical technology research, assembly stations, computer and technical equipment repair... and since the COMBO 4 allows instant and easy vertical adjustment of heavy equipment, it means that people of varying stature and many persons with disabilities can access their work more efficiently and comfortably.
Consider the COMBO 4 wherever there is a need for workers to interface with tasks without the limitations of traditional work environments. The ability to balance diverse loads and position objects within three dimensional space, while allowing 360° rotation simply equates to higher rates of productivity and utility.
YES, WE CAN HELP YOU BUILD YOUR CUSTOM SET-UP:
If the options available in COMBO 4 meet your needs, simply make your selection using the drop down menu on the left and click "Add To Cart" to price and purchase it. If you need a custom solution, our expert staff is here to assist you. You may:
|Shipping Weight||Varies depending on products ordered|
|Shipping Dimensions||Varies depending on products ordered|
|Warranty||5 year limited|
Black is our stocked color for the COMBO 4. Orders received before 12:00 noon CST normally ship the next day if all components are in the color black. There are numerous ways in which this product can be configured. From time to time, we will not have every option available for immediate shipment. Please call us to get a firm commitment for a ship date. This product ships from our central distribution point in North Texas. Non-black components may not be stocked and lead times can stretch to 6 weeks.
Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.
|COMBO 4 WALL TRACK MOUNT - ADJUSTABILITY AND WEIGHT RANGES FOR ARM OPTIONS|
The Combo4 wall track system comes with four choices of vertically adjustable arms and three choices of equipment platforms. The weight of the equipment that can be supported depends on the arm and platform combination. The table shows the equipment weight range that can be supported in each case.
* Maximum horizontal reach is measured from the track to the tip of the forearm with the lifting arm in horizontal position and the arms maximally extended away from the wall at 90 degrees.
The above image represents our 51 inch HD Wall Track shown with two EQP3418 arms. The measurements depicted show the relationships of components when the two height adjustable arms are folded toward the center and in their neutral or horizontal positions. The bottom platform is supported by the SA1288 arm that has no vertical adjustment and is installed at the lowest possible position along the Wall Track.
The above image represents our 51 inch HD Wall Track shown with two EQP3418 arms and one SA1288 arm. The measurements depicted are to better show the dynamic spatial relationships of components. The bottom left platform is supported by the SA1288 arm and is installed at the lowest possible position along the Wall Track. The EQP arm is capable of lowering down to the platform height even though it is mounted above.
The extended capacity wall track is 5" across and protrudes only 1.63" from the wall. The available wire management space behind the track mount is approximately 1.6 x .5 inches.
Heavy-Duty COMBO4 EQP3418 Arm with 12.25”x12.25” tray.
Heavy-Duty COMBO4 SAA2415 Arm with 12.25”x12.25” tray.
Heavy-Duty COMBO4 SA1288 Straight Arm with 12.25”x12.25” tray.
COMBO4 with EQP3418 Arm and 12.5”x12.5” platform, highest position, side view. The Wall Track is indicated by the vertical parallel gray lines.
COMBO4 with EQP3418 Arm and 12.5”x12.5” platform, extended position, side view.
COMBO4 with EQP3418 Arm and 12.5”x12.5” platform, lowest position, side view.
COMBO4 with SAA2415 Arm and 12.5”x12.5” platform, highest position, side view. The Wall Track is indicated by the vertical parallel gray lines.
COMBO4 with SAA2415 Arm and 12.5”x12.5” platform, extended position, side view.
COMBO4 with SAA2415 Arm and 12.5”x12.5” platform, lowest position, side view.
Top view of the EQP3418 arm and 12.5”x12.5” platform. The Wall Track is indicated by the vertical parallel gray lines on the left.
Top view of the SAA2415 arm and 12.5”x12.5” platform.
Top view of the SA1288 straight arm and 12.5”x12.5” platform.
Top view of the 12.5”x12.5” platform.
Top view of the 14.5"x16" platform.

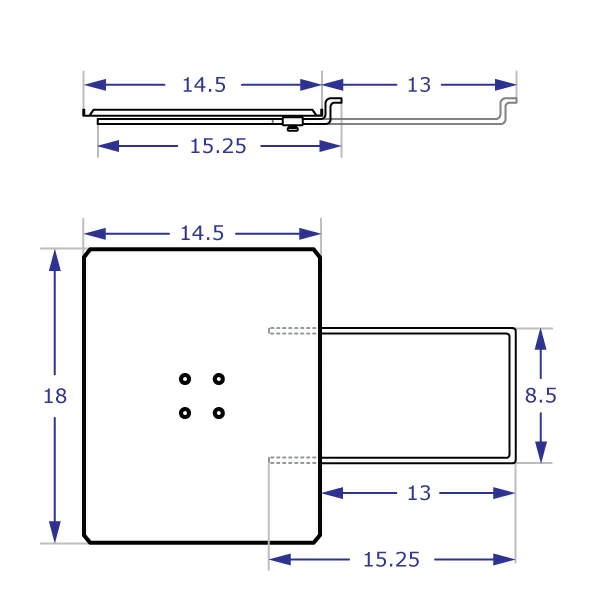

Top view of the 14.5"x18" platform.
Heavy-Duty COMBO 4 EQP3418 Arm with 12.5”x12.5” platform, top view. The equipment platform is shown in the maximum collapsed setting where it extends 19.75 inches from the wall or mounting source when both platforms are touching at the middle.
EQP3418 arm with two 12.5”x12.5” platforms, top view. From the center point, the EQP3418 Arm with 12.5”x12.5” platform extends 30.5 inches from the center of the track to the platform's farthest edge.
Select from one of five EC wall track lengths to match virtually any requirement.
