Typically, no, our mounts are designed specifically for Ergomart products. Contact Ergomart to determine if you would like assistance.
Talk to an ergo expert: (888) 420-3200 or Email Us
SKU
MKIT-D MKIT-D
Mount Kit D is a Heavy-Duty Wall Mount that allows even the longest of Ergomart's heavy-duty monitor arms to manage heavy loads.
Compatible arms: SAA7000,
SAA2010,
SAA2045,
SAA179,
SAA2718,
SAA2415,
SAA4229,
CMD2018,
CMD2415,
CMT2415.
Call Ergomart with your questions when selecting the appropriate mount.
SERIES-118
VIEW COMPATIBLE ARMS & OTHER DEVICES
MOUNT KITS
VIEW ALL SIMILAR MOUNT KIT OPTIONS
EXPLORE
RECENT CUSTOM PROJECTS
LEARN
READ THE SERIES-118 REFERENCE GUIDE
CONSULT
[email protected] | 888 420 3200

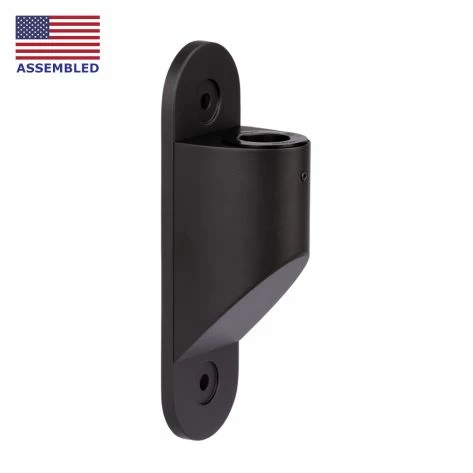

MOUNT KIT D
HEAVY-DUTY WALL MOUNT
KIT D
ISOMETRIC VIEW
KIT D
FRONT VIEW
KIT D
SIDE VIEW
KIT D
TOP VIEW
MKIT-D accepts two fasteners up to .35 inches in diameter. There is a very slight counter bore feature that surrounds the fastener holes and creates a space for washers. It is 1.02 inches in diameter and about .075 inches deep.
-
Will your mount kits work with 3rd party arms?
-
Is there a way that I remove my arm and just put the tilter head in to the mount kit?
No and Yes. Since the tilter head pin is a smaller size than the arm pin, you would not be able to do that without installing an adapter bushing into the mount. Contact Ergomart if you wish to purchase the adapter.
-
What is the screw size for these? Toggle bolt or screws better?
The openings are greater than .37 inches - they can accommodate 3/8", 5/16" and 1/4" bolts and screws. Toggle bolts should NEVER be used in sheet rock unless it has been suitably prepared with thick plywood backer secured to the studs.
-
Does the Wall Mount Kit D come with hardware?
No, hardware is not included due to the wide variety of possible surface materials (wood, metal, concrete, etc.) or the thickness of the wall. Different wall surfaces require different types of fastening systems. Work with a professional installer or contact Ergomart for assistance with the correct hardware for the application.
-
Can I install this using toggle bolts?
It is dependent on the application, payload and the support device that is attached to the mount. If the MKIT-D is attached to a wall using 5/16 screw toggle kits (rated at over 200 pounds of pullout) with 3/4 inch plywood backer properly secured to studs, then arms with less than 25 inches of reach and payloads less than 25 pounds will be appropriate.
-
Why order the MOUNT KIT D Heavy Duty Wall mount over the wall mount configured Flexible mounts? How do I choose?
While the wall mount configured Flexible Mounting Kits work well with most arms and light to moderate payloads, the longer more heavy duty arms often perform better with Heavy Duty Wall Mount Kit D. Kit D provides a stronger mounting base which allows for heavier loads and reduces wobble and vibrations. Stability and reduced vibration are important when the arms have keyboard trays and the user keys at the end of the arm.
