Mounting Kit R: Vertical Surfaces, Equipment

USA ASSEMBLED MODULAR SERIES-118

REQUIRED ITEMS

  • Mount Kit R is adaptable to vertical surfaces
  • Contact us for a CAD file of this or other items
  • Enables customization for vertical surface mounting
  • Ideal for Ergomart's SAA, SA, and LS products
  • Hole pattern is four 1/4 x 20 to a depth of .5 inches
  • Aluminum body has bosses for positive engagement
  • Black, metallic gray and matte white are standard colors
  • Please call for custom color options - lead times vary

The Universal Mount Kit R features a 1.5" x 2.75" hole pattern that allows users to create custom and adapted interface solutions when mounted to vertical surfaces.
It is cast from aluminum and machined for compatibility with most Ergomart monitor mounting arms.
It accepts four ¼"-20 machine screws to a maximum depth of .75 inches.

Compatible arms include: SAA7000, SAA2010, SAA2045, SAA179, SAA2718, SAA2415, SAA4229, CMD2018, CMD2415 and CMT2415.
Compatible Monitor and Keyboard arms include: TRS7000AKP, TRS7000, TRS2718, TRS2018 and TRS2818D and others.

Contact us by phone or email with questions or requirements.

WORKS WITH SERIES-118 DEVICES


COMPLETE MODULARITY BY DESIGN

SERIES-118
VIEW COMPATIBLE ARMS & OTHER DEVICES

MOUNT KITS
VIEW ALL SIMILAR MOUNT KIT OPTIONS

EXPLORE
RECENT CUSTOM PROJECTS

LEARN
READ THE SERIES-118 REFERENCE GUIDE

CONSULT
[email protected]   |   888 420 3200

VERSATILE • MODULAR • HEAVY DUTY

ADAPTABLE • FUTURE PROOF






MKIT-R

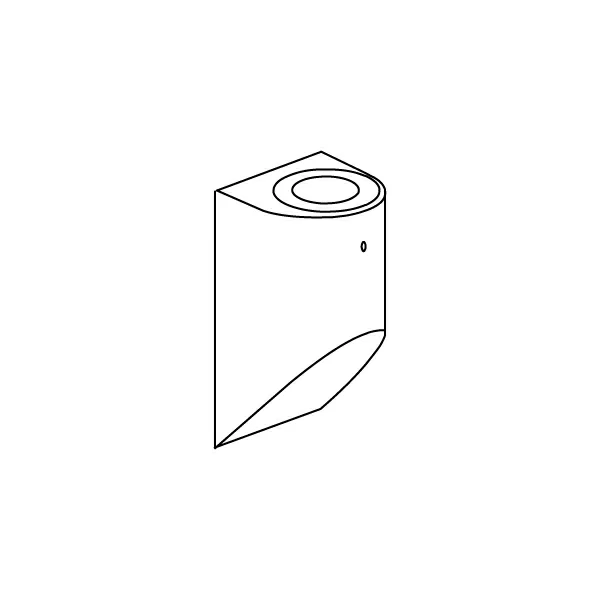

PERSPECTIVE VIEW

MKIT-R track mount specification drawing isometric view



MKIT-R

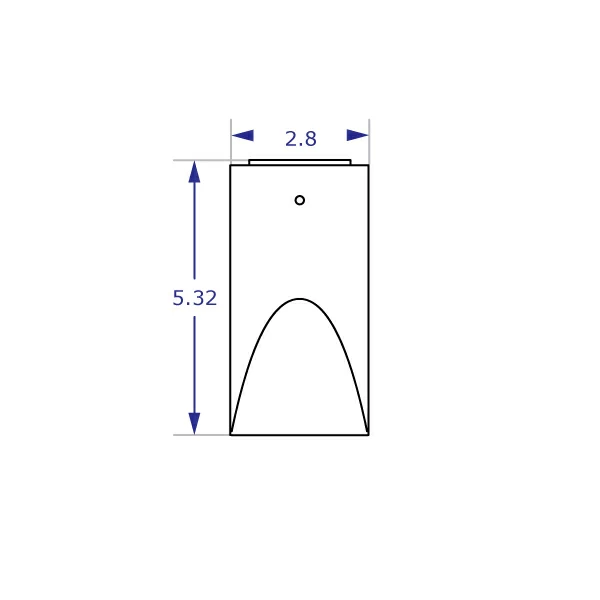

FRONT VIEW

MKIT-R track mount specification drawing front view with measurements



MKIT-R

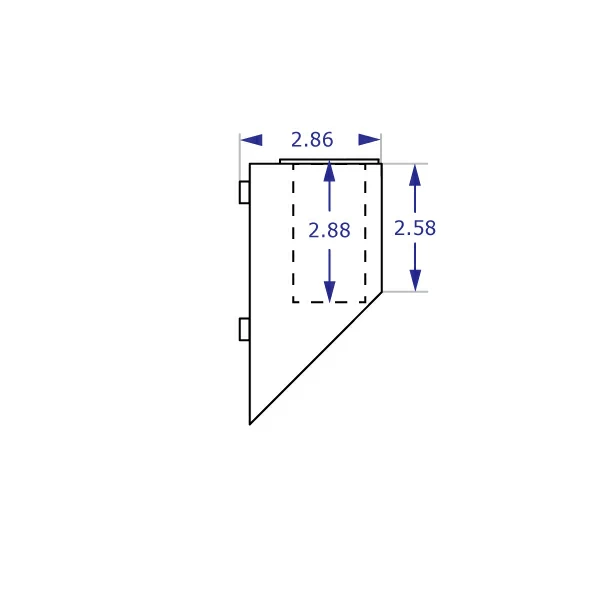

SIDE VIEW

MKIT-R track mount specification drawing side view with measurements



MKIT-R
TOP VIEW

MKIT-R track mount specification drawing top view with measurements



MKIT-R

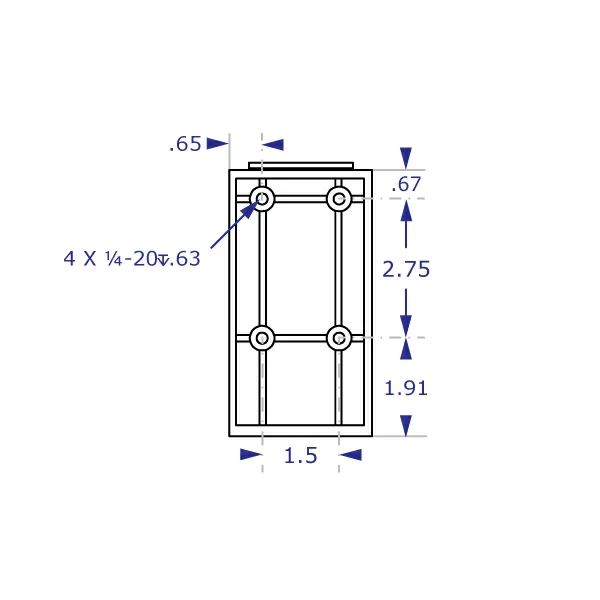

REAR VIEW

MKIT-R track mount specification drawing rear view with measurements







Four .45 diameter bosses extend past back plane of the MKIT-R They protrude 0.15 inches and are understood by viewing the Top, Side and Rear Views. These four fastener points each accept a 1/4-20 thread machine screw and are tapped to a depth of 0.5 inches.

  • Will your mount kits work with 3rd party arms?

    Typically, no, our mounts are designed specifically for Ergomart products. Contact Ergomart to determine if you would like assistance.

  • Is there a way that I remove my arm and just put the tilter head in to the mount kit?

    No and Yes. Since the tilter head pin is a smaller size than the arm pin, you would not be able to do that without installing an adapter bushing into the mount. Contact Ergomart if you wish to purchase the adapter.

  • Does this include the hardware to mount it?

    Fasteners are not included. Since Mount Kit R is attached from the back and accepts 4) 1/4-20 Machine screws to a depth up to .6" inches, it is up to the specifier or installer to determine the appropriate length screw.

  • What makes this different than the wall mount other than the little extra nubs for holes?

    Several details differentiate Mount Kit R. Unlike most other "wall mounts" it must be mounted from behind the surface to which it is attached. The four "nub" are technically referred to as bosses and each boss accepts a 1/4-20 machine screw to a depth of about 1/2". Since the mount is mounted from the back the visual effect is very clean since no screw heads or nuts will be visible.
