Mounting Kit G: Heavy Duty Thru Desk Mounting Kit

USA ASSEMBLED

REQUIRED ITEMS

  • MKIT-G supports heavy loads and long reach arms
  • Optional longer bolts available - call to order
  • A simple solution for mounting our arms to surfaces
  • Black, metallic gray and white are standard colors
  • Accepts all SAA, SA and EQP arms and extensions
  • Compatible with all lengths of VE vertical extensions
  • Please call for custom color options

The Heavy-Duty Thru Desk mount uses a bolt and a rectangular washer to secure it to a work surface.
The standard 2.5 inch bolt allows the mount to clamp on to surfaces up to 1 inch thick.
Thicker work surface? Order an optional 3.5 inch bolt to attach to surfaces up to 2 inches thick or a 4.5 inch bolt to clamp to surfaces up to 3 inches thick.



Compatible arm models: SAA7000, SAA2010, SAA2045, SAA179, SAA2718, SAA2415, SAA4228, SAA4229, CMD2018, CMD2415, CMT2415.

MOUNT KIT G

HEAVY-DUTY THROUGH-DESK MOUNTING KIT

KIT G
PERSPECTIVE VIEW

MKIT-G through-desk mount specification drawing isometric view



KIT G

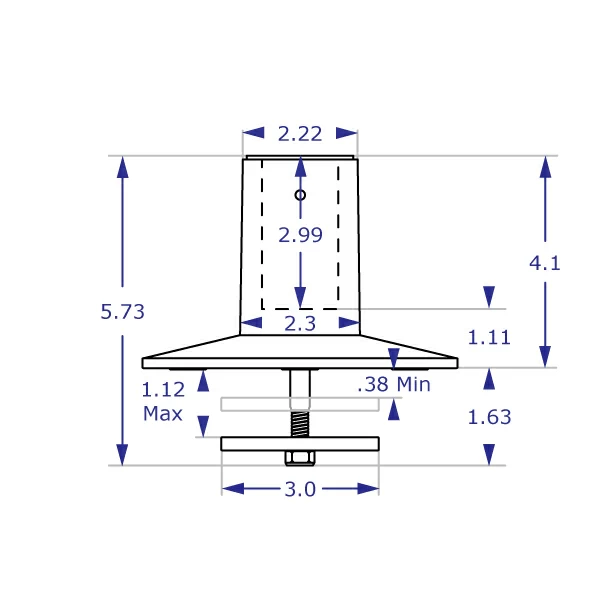

MIN AND MAX CONFIGURATION

MKIT-G through-desk mount specification drawing front view with measurements



KIT G
TOP VIEW

MKIT-G through-desk mount specification drawing top view with measurements



200x200mm Flat VESA Plate with Hardware
200x200mm Flat VESA Plate with Hardware

This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.

QTY:
$21.00
200x400mm Flat VESA Plate with Hardware
200x400mm Flat VESA Plate with Hardware

The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.

QTY:
$26.25
VESA 1/4-inch Spacer Kit
VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

QTY:
$2.00
VESA 1/2-inch Spacer Kit
VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.

QTY:
$3.00
Leave a Review
You're reviewing:Mounting Kit G: Heavy Duty Thru Desk Mounting Kit
Start Rating
  • Will your mount kits work with 3rd party arms?

    Typically, no, our mounts are designed specifically for Ergomart products. Contact Ergomart to determine if you would like assistance.

  • Is there a way that I remove my arm and just put the tilter head in to the mount kit?

    No and Yes. Since the tilter head pin is a smaller size than the arm pin, you would not be able to do that without installing an adapter bushing into the mount. Contact Ergomart if you wish to purchase the adapter.

  • Does this come with a template so I know how to drill into my desk?

    No, however there is only one .325 inch hole that needs to be drilled, so all you need to do is drill the hole to where you want the center of the mount to be.

  • What is the largest size hole in my desk that a Mount Kit G (or any thru desk mount) will work with?

    The 3” rectangular washer is specifically designed for use with a 3/8” bolt and nut supplied with the mount kit. The clearance hole would typically be between .375” and .5” in diameter. The rectangular washer is not for use with clearance holes larger than 1.25” in diameter. For installation where an existing round hole is between 1.25” and 2.24” in diameter contact Ergomart for assistance. Grommet holes larger than 2.25” will accommodate Mount kit C in a clamp configuration.
