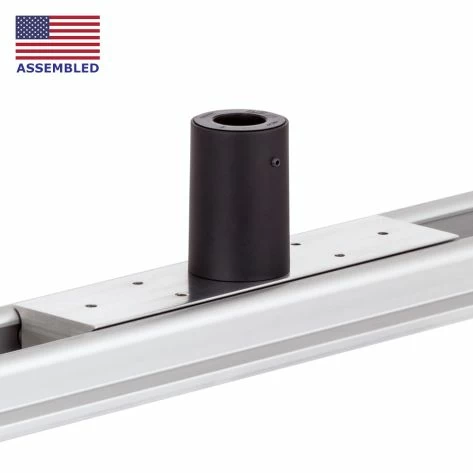

Mount Kit Q: Desktop Monitor Mount on Horizontal Sliding Trolley

USA ASSEMBLED MODULAR SERIES-118

REQUIRED ITEMS

  • Slides monitor arms and stands horizontally on desk
  • Designed specifically for use with our Roller Track mounted facing up on top of a worksurface
  • Mount Kit Q allows for low friction lateral movement
  • Robust sliding mount moves heavy equipment with ease
  • Use with our SAA, CM series monitor arms, LS series monitor stands and heavy-duty extensions
  • Black and metallic gray are standard colors
  • Custom solutions are available for OEM applications
  • Visit RT Sliding Track Mount page for full range of options

Mount Kit Q is designed to move a stand or an arm carrying one or more monitors laterally on top of a desk with ease. This mount slides inside a Roller Track installed on a work surface with the rail facing up. In most scenarios the track will be installed along the back edge of a standard desk or the middle of an extra wide, two-sided work bench. The vertical mounting column integrated at the top of the sliding trolley is compatible with Ergomart's SAA, SA2A, SA4A, CM series monitor arms, LS series monitor stands (supporting up to 4 monitors), as well as heavy duty horizontal and vertical mounting extensions. This means that you can augment all the configurability and features of Ergomart's family of mounting products with one more feature: effortless lateral mobility.

Keep in mind that extending heavy loads at a long distance from the mounting point (e.g. using long reach arms or heavy duty horizontal extensions) may result in excessive stresses. In most cases, the capacity of the mounting system will be limited by the construction of the desk or work bench. If in doubt, consult a structural engineer, an installation professional or simply call Ergomart's product experts with your questions.

Shipping Weight 3.8 pounds
Shipping Dimensions 15" x 11" x 7"
Warranty 5 year limited
WORKS WITH SERIES-118 DEVICES


COMPLETE MODULARITY BY DESIGN

SERIES-118
VIEW COMPATIBLE ARMS & OTHER DEVICES

MOUNT KITS
VIEW ALL SIMILAR MOUNT KIT OPTIONS

EXPLORE
RECENT CUSTOM PROJECTS

LEARN
READ THE SERIES-118 REFERENCE GUIDE

CONSULT
[email protected]   |   888 420 3200

VERSATILE • MODULAR • HEAVY DUTY

ADAPTABLE • FUTURE PROOF




KIT-Q - SLIDING DESK MOUNT
ISOMETRIC VIEW

MKIT-Q horizontal sliding desktop monitor mount isometric specification image

The mount kit trolley is shown inside the track. It features a mounting column that can accept all Ergomart SAA, SA, CM, LS series arms and mounts as well as HDEXT, and VE series horizontal and vertical extensions.



KIT-Q - SLIDING DESK MOUNT
FRONT VIEW

MKIT-Q horizontal sliding desktop monitor mount front view specification image with measurements

The front view of MKIT-Q is shown inside the track. The flange of the track is 5.3" wide and .4" tall. The top of the mounting column is 5.1" from the mounting surface.



KIT-Q - SLIDING DESK MOUNT
SIDE VIEW

MKIT-Q horizontal sliding desktop monitor mount side view specification image with measurements

In this side view, MKIT-Q is shown inside the track. The receiver is 2.9" deep. It is thus compatible with all Ergomart SAA, SA, CM, LS series arms and mounts. When using heavy duty extensions and long reach arms, the capacity of the solution may be limited by the construction of the work surface, the payload, the geometry and other usage factors.



KIT-Q - SLIDING DESK MOUNT
TOP VIEW

MKIT-Q horizontal sliding desktop monitor mount top view specification image with dimensions

Top view of MKIT-Q. It is 11.5" long and 2.7" wide with a 2.3" diameter mounting columb at its center.



KIT-Q - SLIDING DESK MOUNT
TOP MOUNTING HOLES

MKIT-Q horizontal sliding desktop monitor mount top view specification image showing the position of optional mounting holes

Top view of MKIT-Q showing additional mounting holes which can be used for custom mounting brackets, for example, to attach a CPU or Thin Client Holder.



  • Will your mount kits work with 3rd party arms?

    Typically, no, our mounts are designed specifically for Ergomart products. Contact Ergomart to determine if you would like assistance.

  • Is there a way that I remove my arm and just put the tilter head in to the mount kit?

    No and Yes. Since the tilter head pin is a smaller size than the arm pin, you would not be able to do that without installing an adapter bushing into the mount. Contact Ergomart if you wish to purchase the adapter.
