Mount Two Monitors Side-by-Side with Exceptional Positioning Versatility

  • The LS1512D is a highly adaptable dual monitor mount often used as a desk-mounted stand

  • But this SERIES-118 modular mount can adapt to any workspace (industrial, commercial, medical, etc.)

  • Two extended, adjustable VESA brackets are mounted on a pole that works with all compatible mount kits

  • Handles two 35 lb flat screens, each measuring up to 24.7” in width

  • Instantly adjust up / down flat screen tilt

  • Instantly adjust left / right swivel

  • Easily adjust LCD monitor depth

  • VESA 75 and 100 compliant


Adjustability:

Easily position and precisely adjust the tilt (90° up and 45° down), rotation (portrait/landscape), swivel (generally limited only by monitor size and position) of your LCD monitors. This stand is ideal for multi-user environments where users’ needs vary based on their height and work positioning preferences. The LS1512D stand comes standard with 14 inch pole, but longer poles are also available.

Applications:

The LS1512D is a SERIES-118 mount, which means it works with all SERIES-118 mount kits and provides exceptional versatility for mounting.

  • Desk Mounting: Mounting this LCD could not be easier. The standard 4-in-1 mount Kit A allows stand to clamp to the back of a desk with as little as 1/4 of an inch of clearance between the desk edge and wall. Configure it to mount in an existing grommet hole or securely fasten it through a single 3/8" hole. Wall mounting capabilities are also included at no additional cost.

  • Wall Mounting: Several additional mounting options exist for Wall-Mounting, Wall-Track mounting and other environments.

  • Applications Requiring Secure Poles: In certain applications, the LS1512D pole attaches to a mount kit that has a through hole such as MKIT-M and MKIT-N for the Roller Track or MKIT-E and MKIT-J for PM192 poles. In such cases, an P118RS secure mounting pole must be used to keep the pole on the MKIT and the mounting components on the pole.

  • Roller Track: LS1512D mount works well with Roller Track Sliding Horizontal Mount System, regardless of whether the track is mounted low, at eye level, or overhead. In the latter scenario, the LS1512D mounting pole can be secured to MKIT-M or MKIT-N so that it extends downwards, thus bringing the monitors to eye level.

LS1512D horizontal track isometric view with dual monitors positioned high

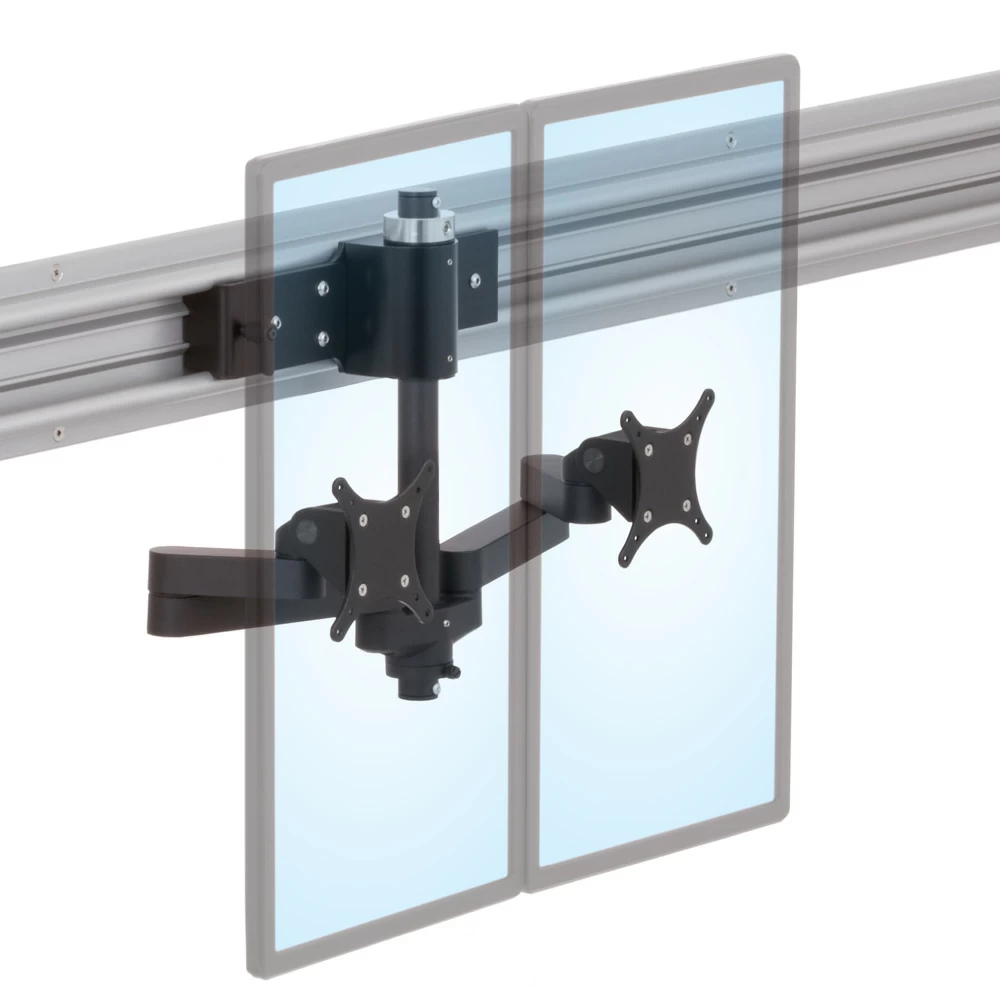

LS1512D horizontal track sliding mount isometric view with dual monitors in portrait orientation
LS1512D horizontal track sliding mount isometric view with dual monitors positioned low



  • “Drop-down” Poles: The LS1512D can be used in combination with a ceiling-mounted existing pole or an Ergomart PM192 pole equipped with an MKIT-E to allow monitors to reach down from the ceiling over an open floor space.  Two dual monitor mounts can be mounted back to back using MKIT-J.

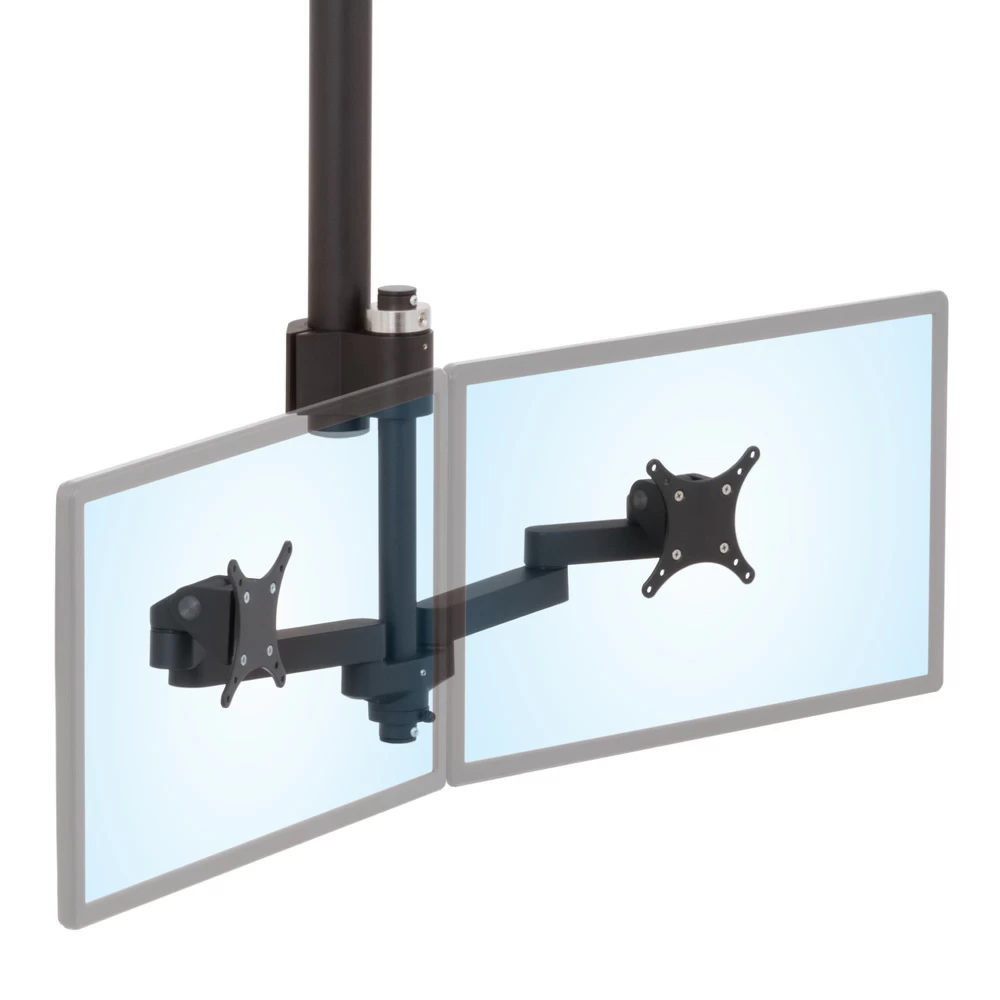

LS1512D dual monitor mounted overhead using a ceiling-mounted pole seen from an isometric angle

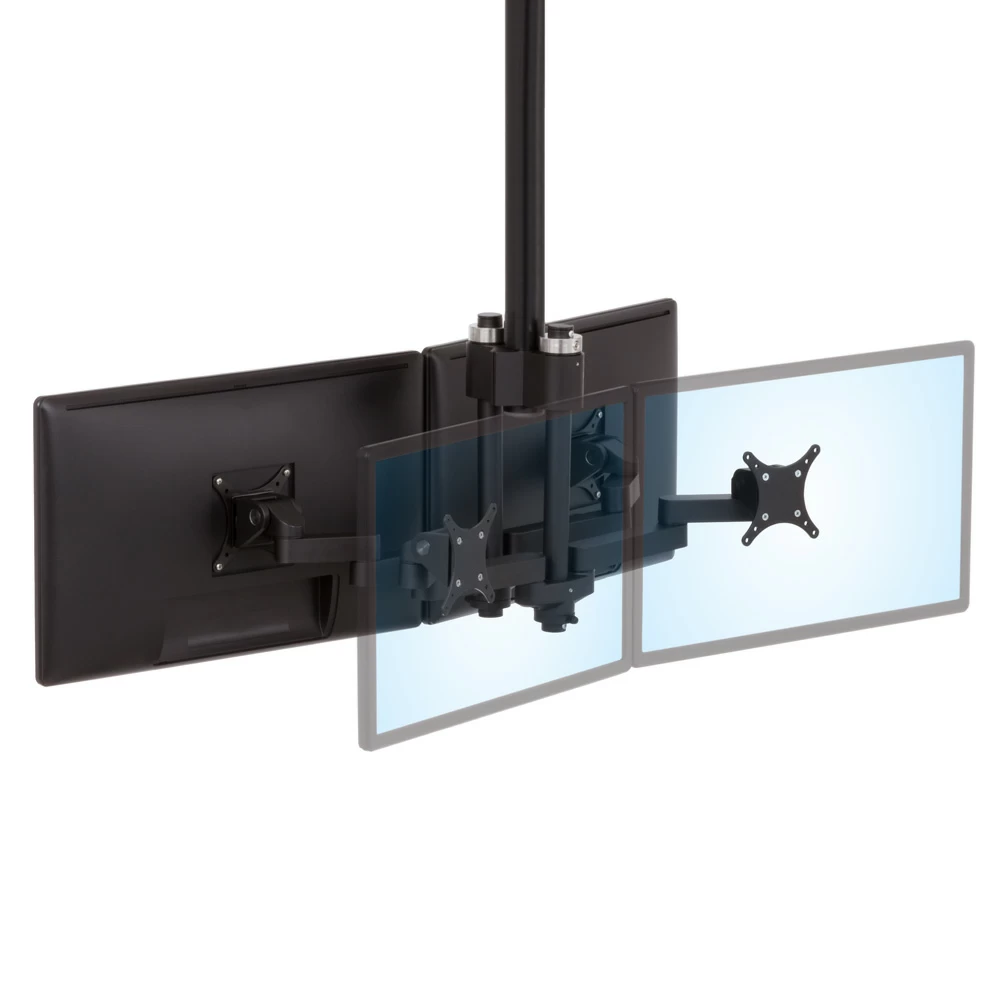

LS1512D horizontal track monitor mount isometric view with four monitors mounted back to back



Additional Mounting:

Optional mounts are also available. Interested in purchasing the Cube or Slatwall mounts? Just give us a call: 888 420 3200 or 214 742 6066.

This mount can be expanded fit four monitors, with two monitors mounted over two. Check out the LS1512Q Quad Monitor Stand.


Shipping Weight 16 pounds
Shipping Dimensions 32" x 13" x 6"
Warranty 5 Year limited
MORE THAN 20 MOUNT OPTIONS
INTEGRATES WITH FOUR SYSTEMS


COMPLETE MODULARITY BY DESIGN

SERIES-118
VIEW ALL SIMILAR MOUNTING DEVICES

MOUNT KITS
VIEW COMPATIBLE INSTALLATION OPTIONS

LEARN
READ THE SERIES-118 REFERENCE GUIDE

CONSULT
[email protected]   |   888 420 3200

VERSATILE • MODULAR • HEAVY DUTY

ADAPTABLE • FUTURE PROOF




Mount Type

Pole Stand

Number of Monitors

2

Mounting

  • Flex Kit A
  • Tall Flex C
  • Wall Kit D
  • HD Track F
  • Thru Desk G
  • Column Mount K
  • OEM Mount R
  • Slatwall H
  • Pole Mount E
  • Dual Pole Mount J
  • Medical Dovetail S
  • Horizontal Track Slider M
  • Wall Mount Roller Trolley N
  • Desk Top Roller Trolley Q
  • Ceiling Roller Trolley U

Weight Range

Up to 35 lb per monitor

Monitor Horizontal Reach

30"

Vertical Adjustment

Readjustable along 14" pole

Horizontal Extensions

Call for information.

VESA Options

75 x 75
100 x 100
100 x 200
200 x 200

Portrait to Landscape

Yes

Max Swivel (at Elbow)

360°

Max Swivel (at Monitor)

Up to 360° depending on monitor size/tilt

Monitor Tilt Range

+90° up, -45° down

LS1512D Dual Monitor Arm - Side View

LS1512D dual monitor stand specification drawing front view with arms placed opposite to each other with measurements

Pole diameter is 1.1875" (1 and 3/16"). Total vertical travel of the arms is dependent on the length of pole and the depth of the receiver component of the mount kit. Specific mount kit depths can be found in the specification drawings of each mount kit product page.

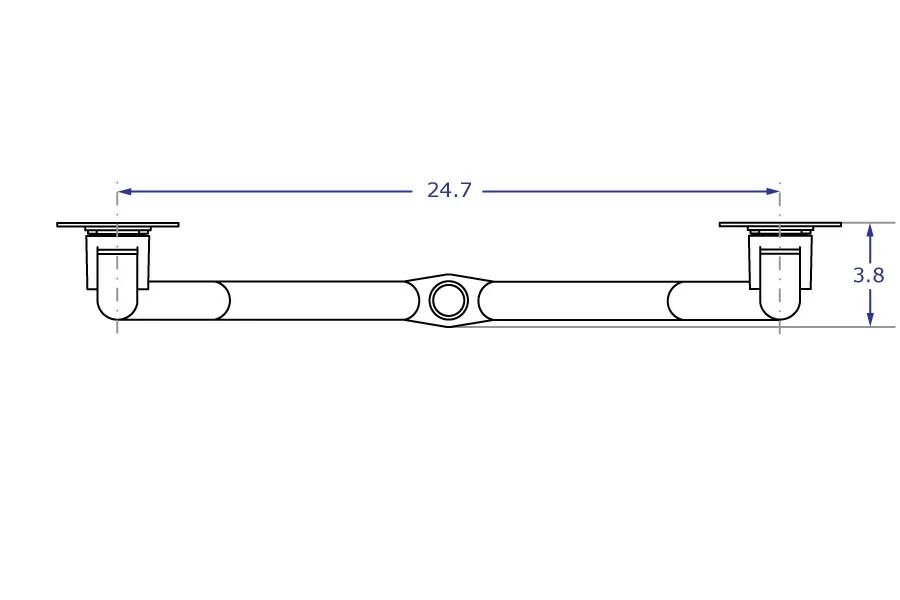

LS1512D Dual Monitor Arm - Top View

LS1512D dual monitor stand specification drawing top view with arms placed at widest position apart with measurement

Top View of the LS1512D showing a total possible farthest distance between monitor centers of 24.7 inches when facing the same direction. When angling the monitors inward, distance will be slightly reduced. Maximum monitor size will depend on the size of the bezel, orientation of the monitors and viewing angle.



100x200mm Flat VESA Plate with Hardware
100x200mm Flat VESA Plate with Hardware

V12

The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.

QTY:
$16.54
Front view of V22 200 x 200 mm VESA adapter plate for large computer monitors and TVs
200x200mm Flat VESA Plate with Hardware

This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.

QTY:
$22.05
Front view of V24 200 x 400 mm VESA adapter plate for very large computer monitors and TVs
200x400mm Flat VESA Plate with Hardware

The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.

QTY:
$27.56
Front view of V46 extra large VESA adapter plate for extra large and heavy computer monitors and TVs
Heavy-Duty Mount Adapter Plate 100x300 to 400x600mm

The extra large MSU4X6 VESA adaptor bracket attaches to a wide range of VESA patterns from 100x300 mm up to 400x600 mm. The hole patterns on the central plate allow it to be mounted to tilter heads or wall mounts, often using an additional smaller VESA plate (e.g., 75 mm, 90 mm, 100 mm, 200 mm or 100x200 mm) in between.

QTY:
$71.66
VESA 1/4-inch Spacer Kit
VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

QTY:
$2.10
VESA 1/2-inch Spacer Kit
VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.

QTY:
$3.15
  • What is the maximum monitor size I can use with this?

    The maximum monitor width is 24.7 inches, the maximum height depends on the size pole you choose.

  • If I have 2 monitors of different sizes, is there a way to adjust their height individually?

    This particular mount is not designed for individually adjusting the heights of monitors. For that kind of adjustability, consider the SA2A.
